Dual Network Ports 4G LTE CAT4 Industrial CPE WiFi Router LT220

Product Brief

This device is a high-performance 4G broadband wireless router, supporting the maximum DL / UL rate of 150 / 50Mbps. it provides high-quality data communication and optimized WiFi data transmission. Diversified WiFi standards and encryption modes ensure the safety and stability of the product.

With a variety of working modes (4G to WiFi / 4G to cable), rich network protocols and reliable connections, it can be widely used in business and home. It has the function of regular restart and firewall protection. The built-in hardware watchdog can effectively prevent the system from crashing during operation. Built in dual firmware can automatically recover the system due to software upgrade failure or abnormal startup caused by software.

High Speed 4G Industrial WiFi Router

• Household
• Business
• Industry
• High speed access

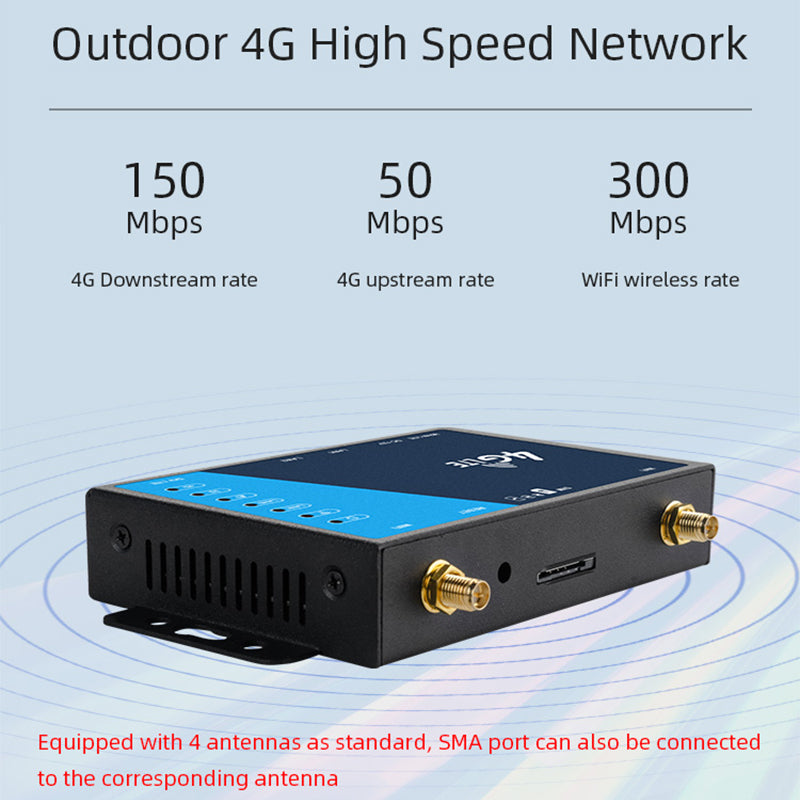

Outdoor 4G High speed Network

• 4G Downstream rate 150Mbps
• 4G upstream rate 50Mbps
• WiFi wireless rate 300Mbps

Equipped with 4 antennas as standard, SMA port can also be connected to the corresponding antenna.

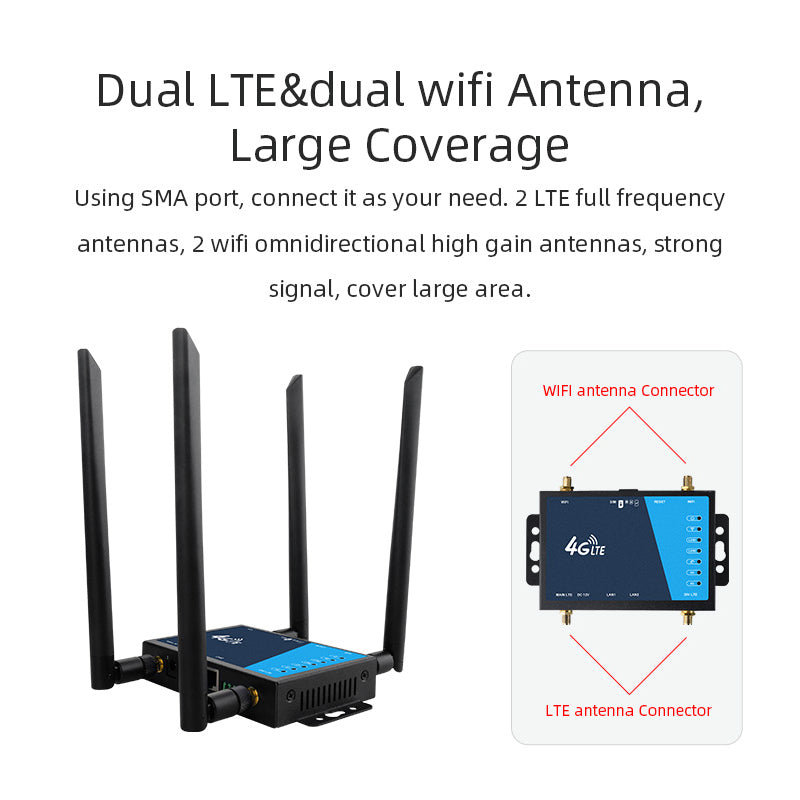

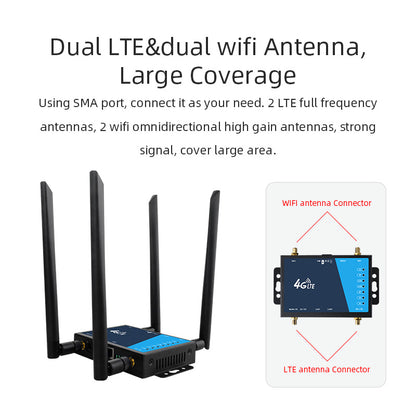

Dual LTE & dual wifi Antenna Large Coverage

Using SMA port, connect it as your need. 2 LTE full frequency antennas, 2 wifi omnidirectional high gain antennas, strong signal, cover large area.

Industrial Design

• Metal shell
• Dual firmware
• Watchdog protector
• firewall
• WiFi encryption

Great for Outdoor Business

What to do if no internet when going out for exhibition? Our 4G router, plug and play, enjoys high-speed 4G network quickly.

Suitable for Mine & Construction Site

Outdoor working scenes such as mine have limited power supply and networking conditions. Our router can help you to slove those problems, besides, it still can connect USB boost cable via power bank to work, even when the power is tight.

Product specification

• Dual network interface design, can provide wired network for other equipment.
• Plug in the SIM card to easily provide a network for the device.
• Regular restart and firewall protection
• Built in hardware watchdog, built-in dual firmware, stable operation.

4G Industrial Router Technical Data

Base Info

• Product name: 4G Industrial CPE
• Model name: LT220
• 4G LTE: Cat4
• Speed: Download 150Mbps / Upload 50Mbps
• Routing and WiFi chipset supplier: MTK
• Routing and WiFi chipset model: MT7628N
• DDR/SPI: 64MBytes / 16MBytes

WiFi

• IEEE 802.11 b/g/n, 2x2 MIMO
• WiFi bands: 2.4GHz
• WiFi security: WPA/WPA2
• WiFi Users: 32 max
• WiFi Speed: up to 300Mbps

Product Status

• New and unlocked
• Work in Middle East, Europe, Asia, Australia, Africa, Brazil, Chile.

Packing List

• 4G Industrial CPE LT220*1
• External Antennas *4
• RJ45 Ethernet Cable *1
• EU/UK/US Power Adapter *1

Radio Frequency

• Main antenna: Internal antenna
• Receive diversity antenna: Internal antenna
• WiFi band: 2400MHz-2483.5MHz
• MIMO for WiFi: 3dbi X 2

Max. transmitter power for WiFi

• 802.11b   24dBm±2dBm;
• 802.11g   16dBm±2dBm;
• 802.11n   15dBm±2dBm;


Antennas

• 4 * Pieces External Antennas
• 2 * LTE External Connector
• 2 * WiFi External Connector

Bands:

• 4G LTE FDD: B1 / B3 / B5 / B7 / B8 / B20 / B28
• 4G LTE TDD: B38 / B40 / B41
• WCDMA: B1 / B5 / B8

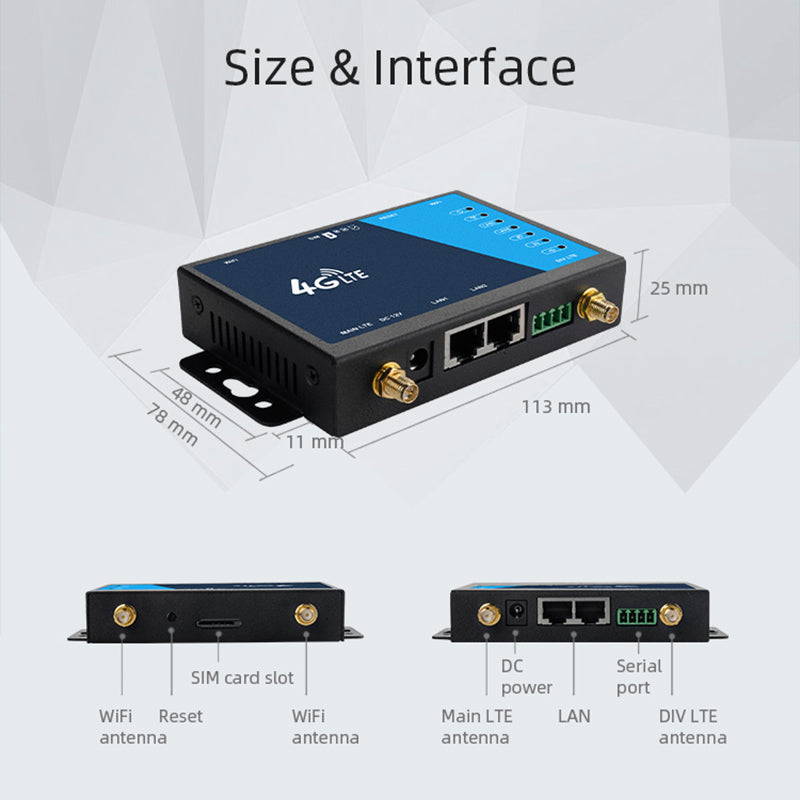

Interface

• Network: 2*LAN
• SIM: 2FF Sim
• Button: Reset
• DC Adapter: Input voltage 12V-1A

Software

• Language: Support English
• APN Setting: Supported
• Device Settings: Supported
• WIFI Settings: Supported
• Routing Settings: Supported
• Firewall Settings: Supported

Environment

• Operating temperature: 0 to 50° C
• Storage temperature: -40 to 70° C
• Humidity: 5% to 95%
