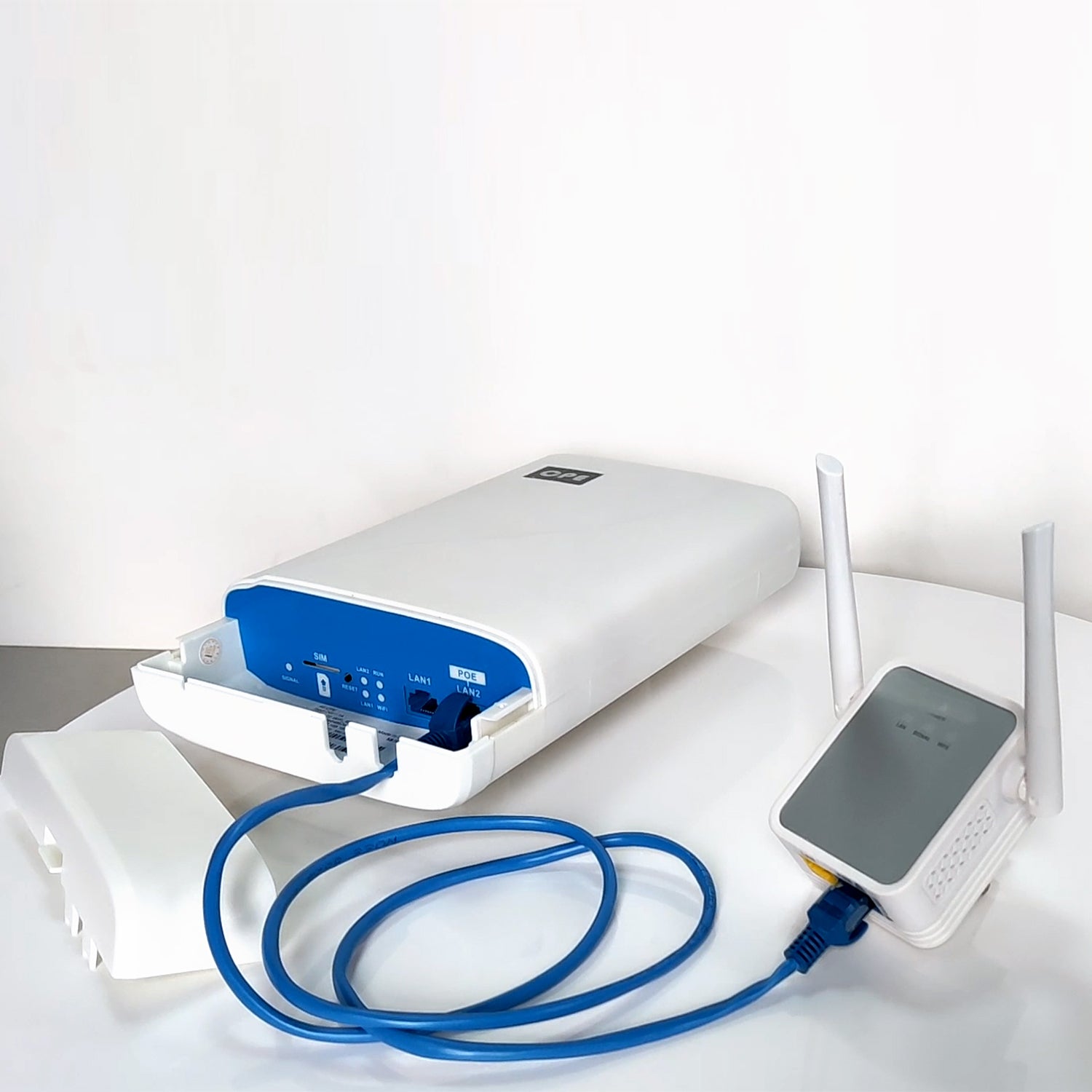

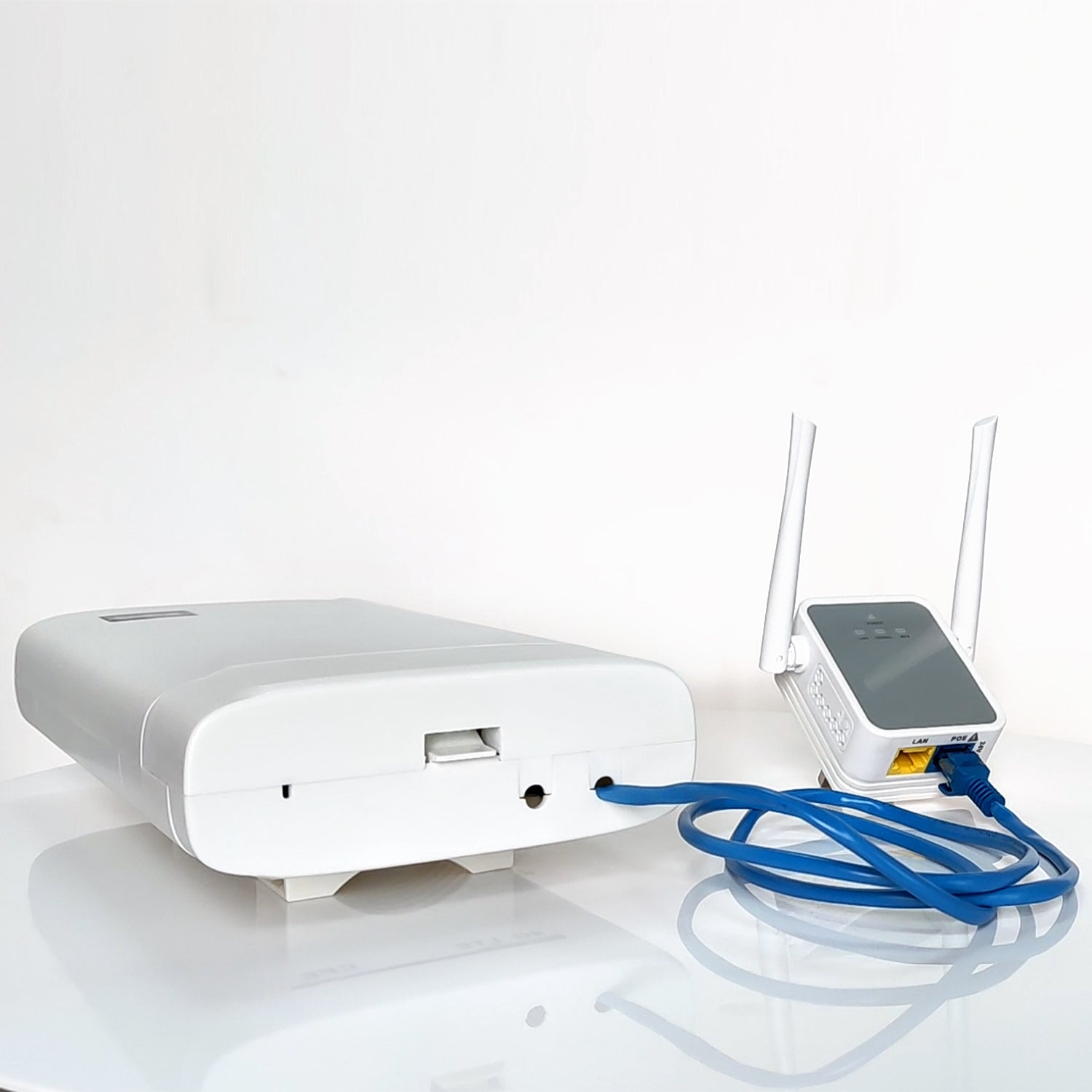

Dual Network Ports 4G LTE CAT4 Outdoor CPE POE Router LT17+TS780P

This product is a 4G CPE supporting outdoor installation, equipped with dual network port, which can provide wired network for other equipment. Poe power supply design, flexible networking. Plug in the SIM card to easily provide a network for the device. It can be used outdoors, and the plug-in card has a network anytime, anywhere.

It has the function of regular restart and firewall protection. The built-in hardware watchdog can effectively prevent the system from crashing during operation. Built in dual firmware can automatically recover the system due to software upgrade failure or abnormal startup caused by software.

Product specification

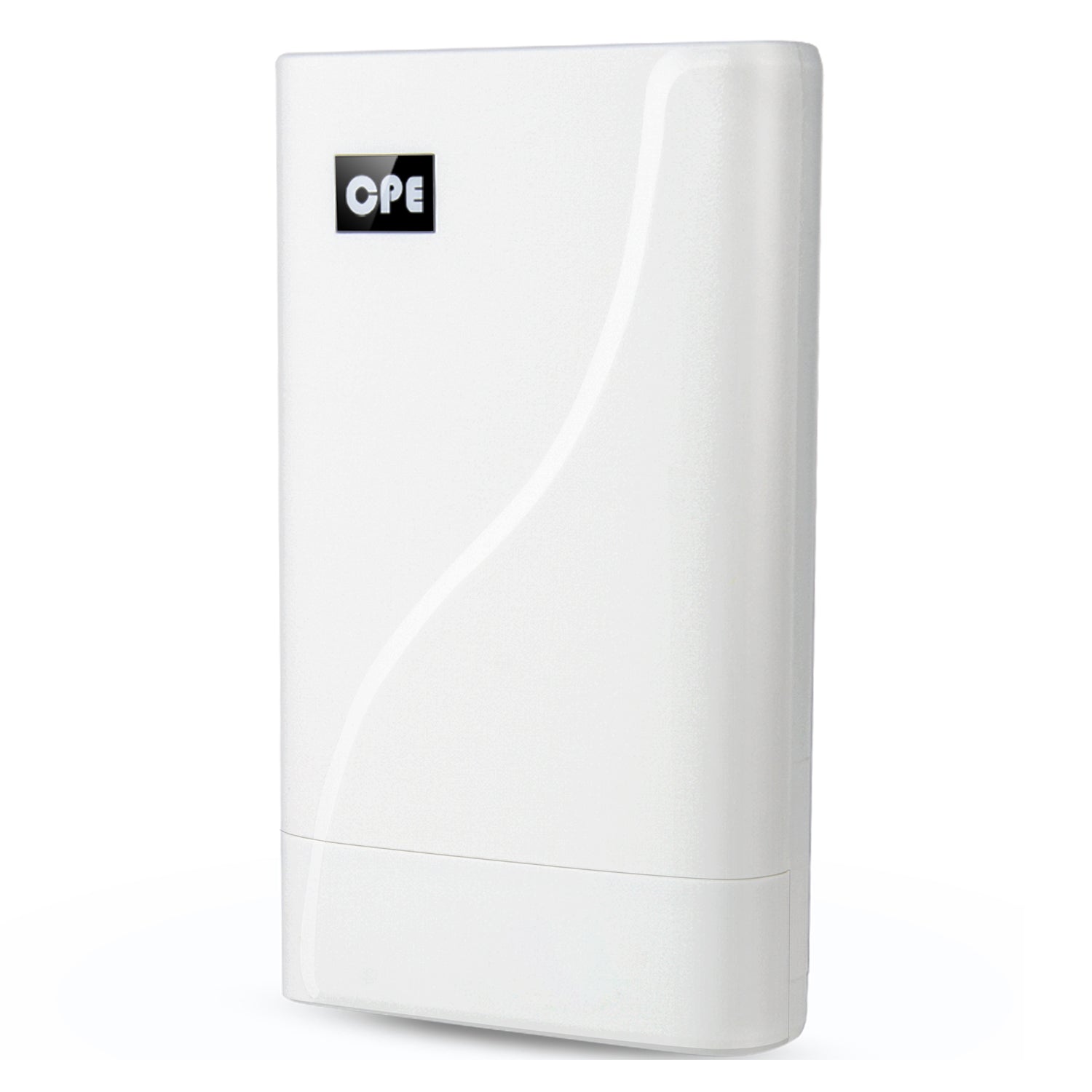

LT17

• Dual network interface design, can provide wired network for other equipment.
• POE power supply, flexible networking mode.
• Plug in the SIM card to easily provide a network for the device.
• It can be used outdoors, and the plug-in card has a network anytime, anywhere.
• Built in hardware watchdog, built-in dual firmware, stable operation.
• With directional antenna, it can receive remote base station signal.

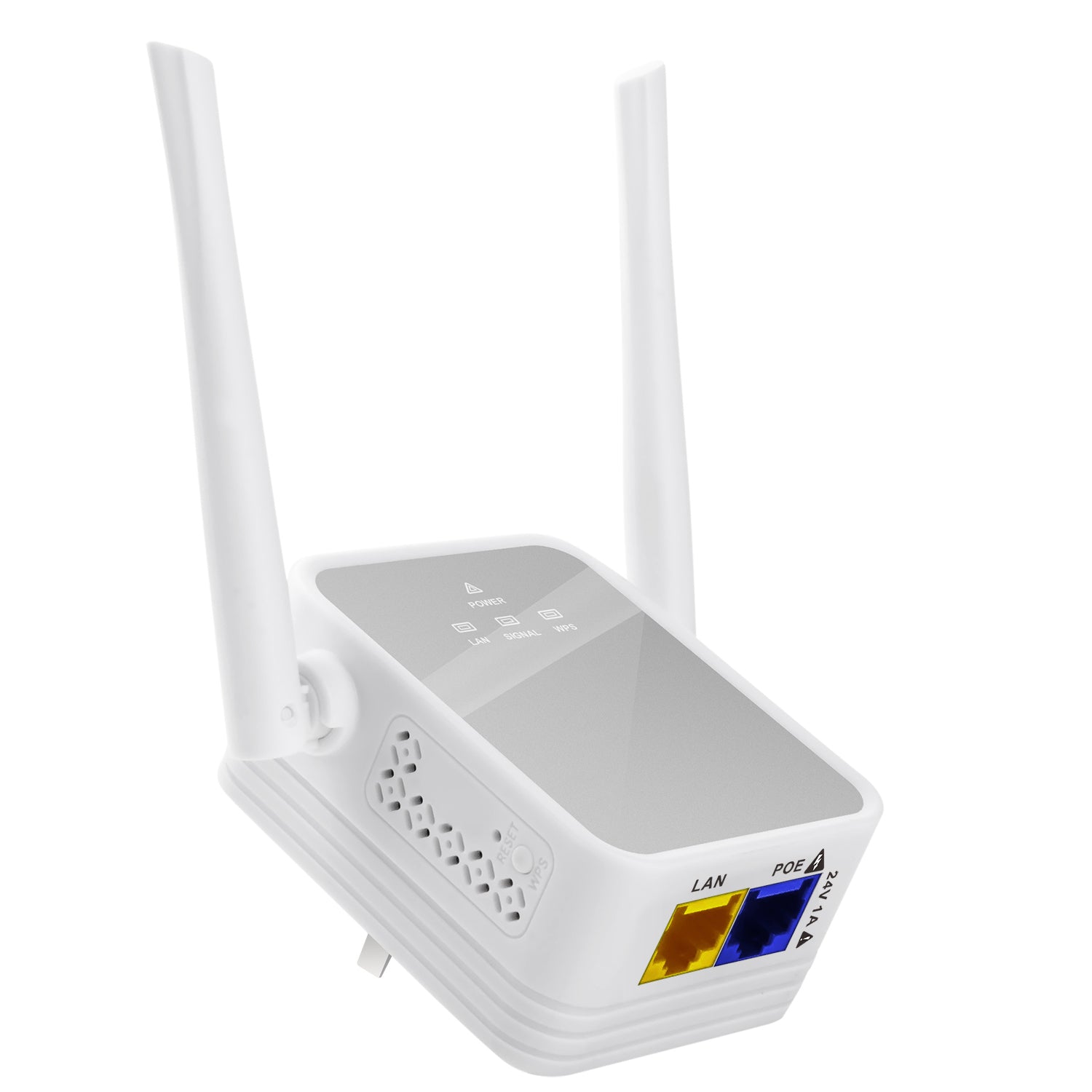

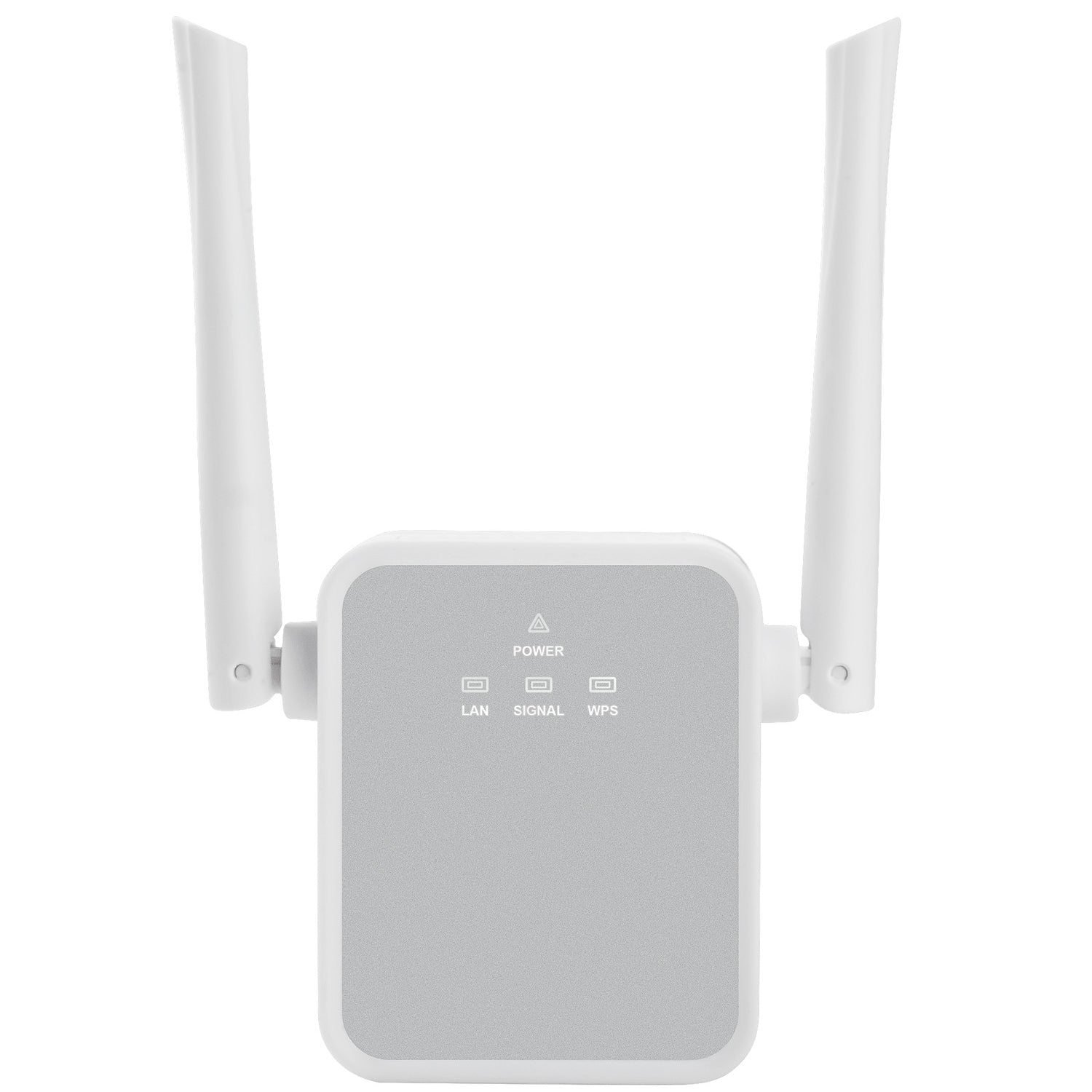

TS780P

• The LAN port allows you to connect wired devices.
• The POE port is powered, outputting 24V/1A, and can power other devices.
• Equipped with two antennas, it provides strong WiFi coverage.
• The wall-mounted design and built-in power supply module make it easy to use.

※ The WiFi signal transmitted by default is only for the convenience of users to use the mobile device to set it. The WiFi can only be connected in a short distance, and it is not used for wireless coverage.

Wide application scenarios

• Family: Broadband access is troublesome Access to the Internet with plug-in card.
• Renting house: Save the trouble of payment You can buy a card and have Internet.
• Outdoor: Access to the Internet with SIM card Easy Component Network.
• Engineering: Where there's no broadband Card can also have network.
• Residential quarters: 4G network for card insertion Fast and convenient network speed.

Specification Parameter

Base Info

• Product name: 4G Outdoor CPE Router

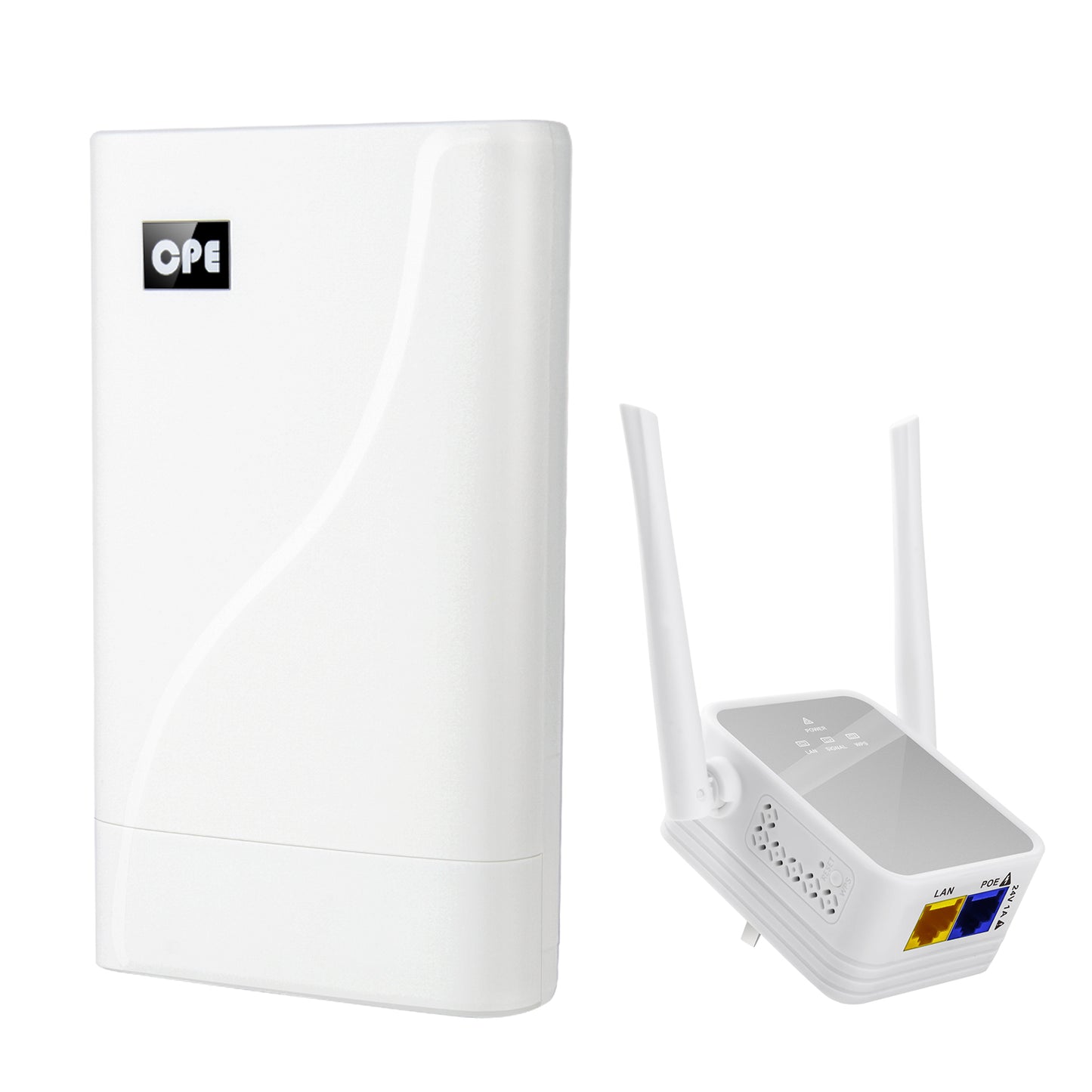

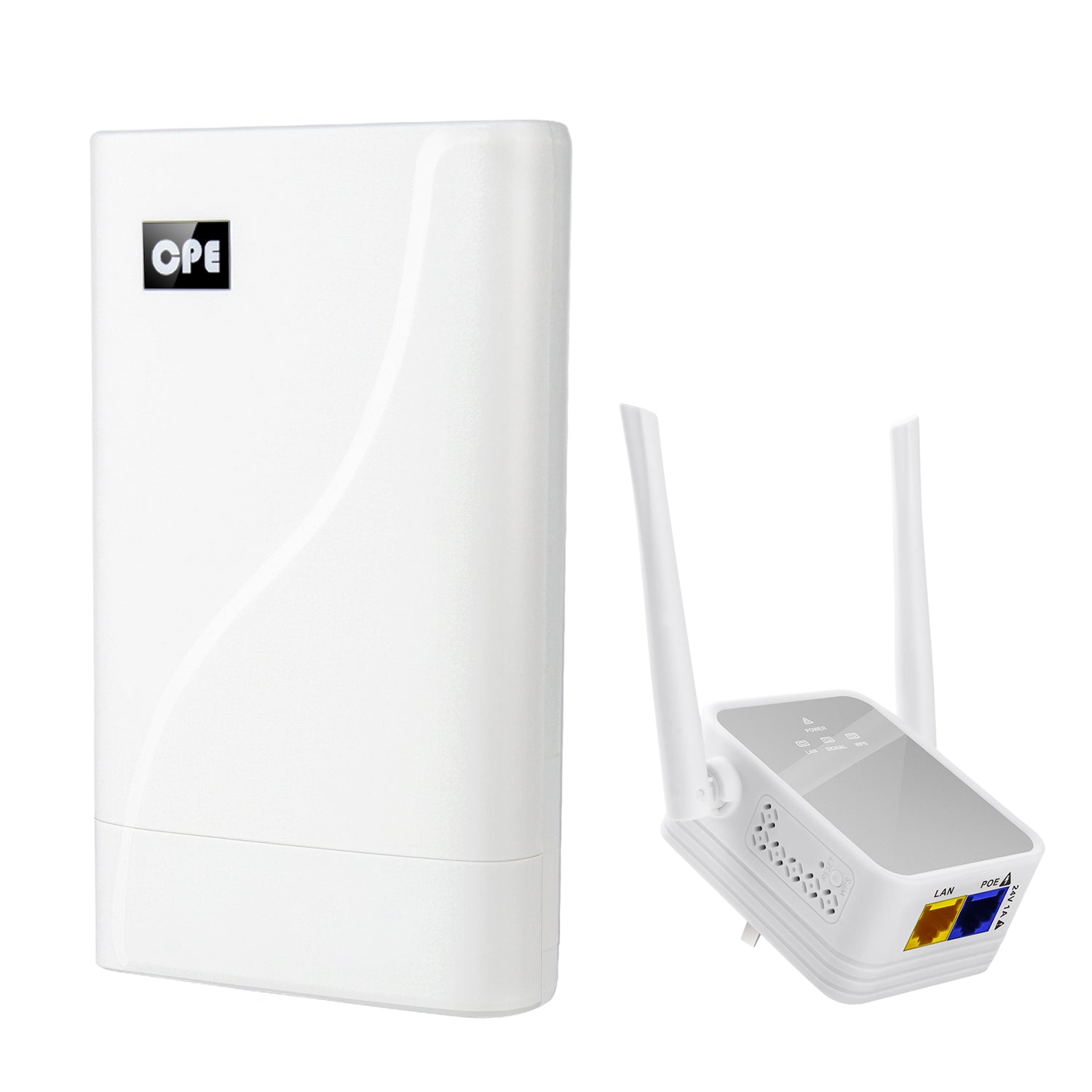

• Model name: 4G Outdoor CPE LT17 + TS780P Wall-mounted Wireless Repeater
• 4G LTE: Cat4
• Speed: Download 150Mbps / Upload 50Mbps
• Routing and WiFi chipset model: MT7628N
• Routing and WiFi processor info: IEEE 802.11 /b/g/n
• DDR/SPI: 64MBytes / 16MBytes

Product Status

• New and unlocked
• Work in Middle East, Europe, Asia, Australia, Africa, Brazil, Chile.

Packing List

• 4G Outdoor CPE LT17 *1
• Wall-mounted Wireless Repeater TS780P *1
• RJ45 Ethernet Cable *1
• EU/UK/US Power Adapter *1

Bands:

• 4G LTE FDD: B1 / B3 / B5 / B7 / B8 / B20 / B28
• 4G LTE TDD: B38 / B40 / B41
• WCDMA: B1 / B5 / B8

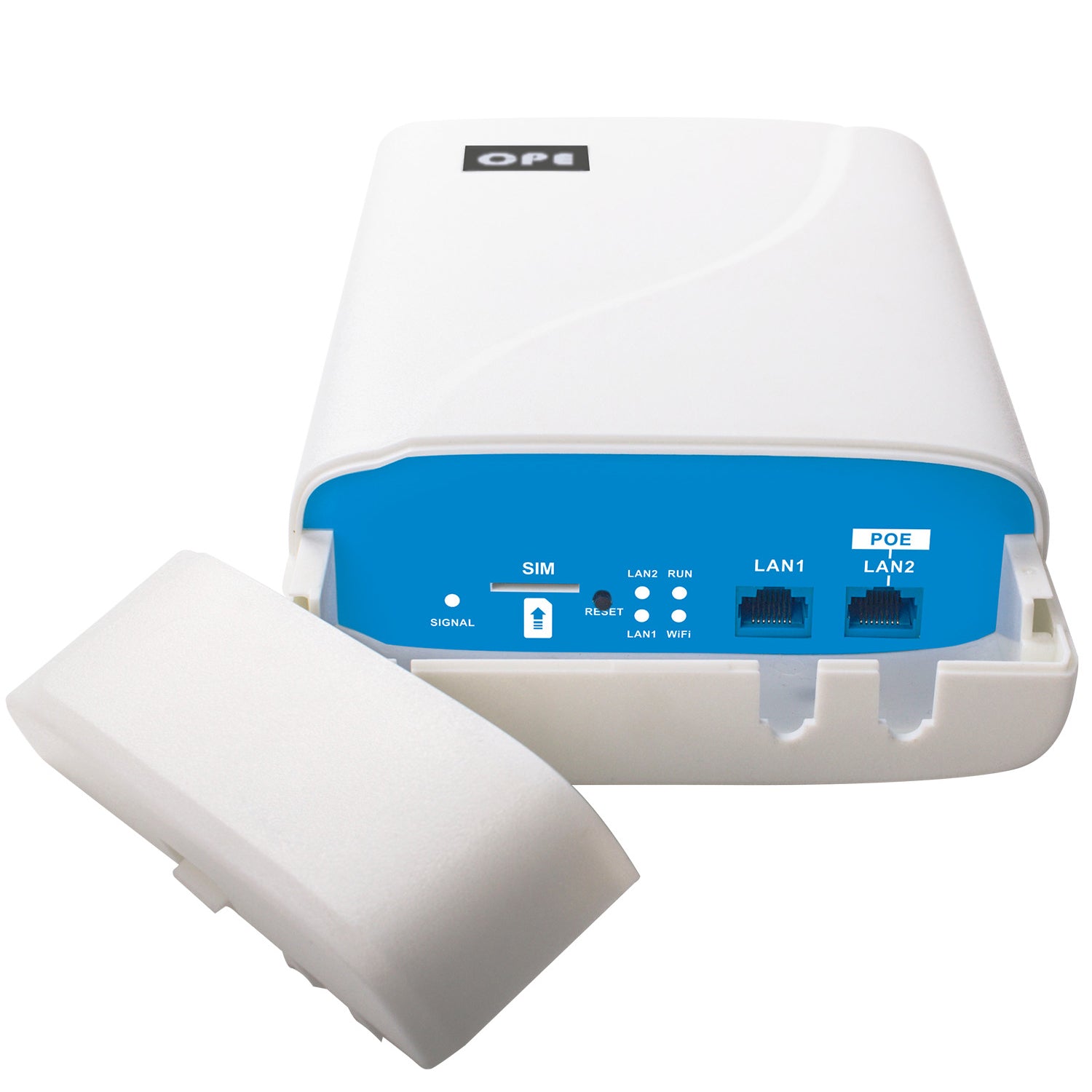

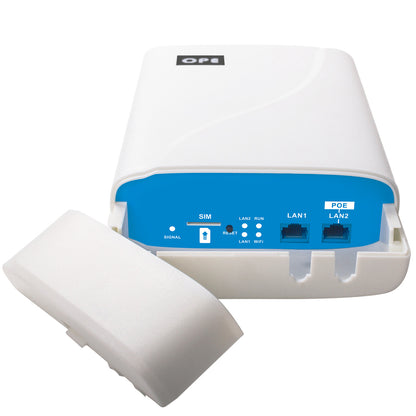

Interfaces

• Network: 2*Lan
• SIM: 2FF Mini sim
• Button: Reset
• POE Adapter: Input voltage 24V-1A

Solution

• Routing and WiFi chipset supplier: MTK

Software

• Language: Support English
• APN Setting: Supported
• Device Settings: Supported
• Routing Settings: Supported
• Firewall Settings: Supported

Installation

• Wall mount
• Pole-mounted installation

Environment

• Operating temperature: -35 to 75° C
• Storage temperature: -40 to 90° C
