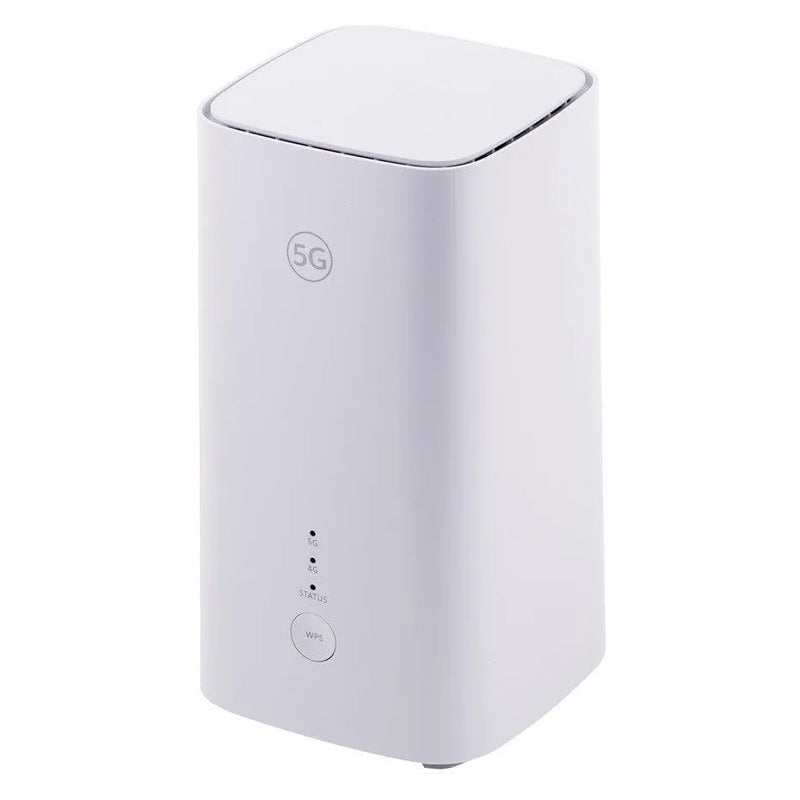

HUAWEI 5G CPE 5 H155-381 WiFi 6 AX3000 RJ45 Wireless Router

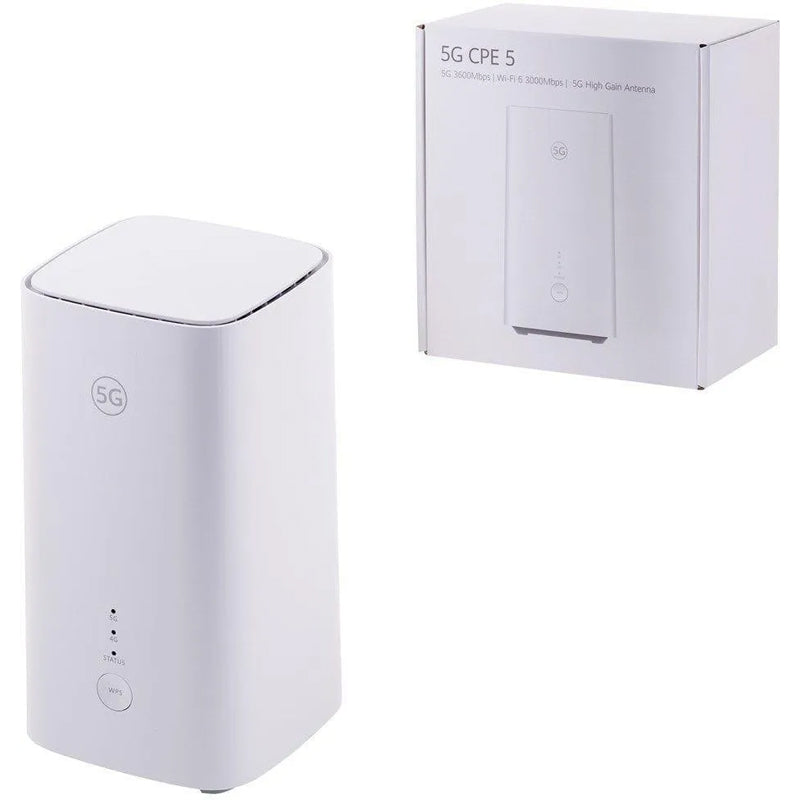

HUAWEI 5G CPE 5 H155-381

● HUAWEI 5G CPE 5 (H155-381) is a high-performance 5G Indoor WiFi router. The new 5G wireless router supports both 5G NSA and SA modes, offering 5G download speeds of up to 3.6Gbps and 500Mbps.

● NEW 2023: Huawei H155-381 Brovi DL 5G Router up to 3.6 Gbps/ UL up to 500 Mbps

● WiFi 6 up to 3000mbps.

● NanoSIM type sim card slot. DDNS, Built-in L2TP/PPTP VPN Client. No visible antenna connector for external antenna connection.

● Disable your pin on a phone for convenience

● NEW DESIGN: Compatible with all operators Free Mobile, SFR, Bouygues Telecom, Orange. Not compatible with 4G Home Flybox Orange subscriptions (the operator prohibits the use of another router). Following the automatic switch to IPV6 with some operators, make sure that all your connected devices are IPV6 compatible, or otherwise configure an APN in IPV4 only.

Key Features

● Compatible with 5G frequencies in NSA and SA mode (Non Stand alone and Stand Alone) in bands FDD n1/3/5/7/20/28/71 and TDD 38/40/41/77/78/79 and 4G in bands B1/3/5/7/8/18/19/20/26/28/32/ 34/38/39/40/41/42/43.

● In 5G, download up to 3.6 Gbps and upload up to 500 mbps (depending on the operator's network), DL MIMO 4x4: n1/3/7/38/40/41/77/78 /79.5G 2x2 MIMO; n5/8/20/28/71; UL MIMO 2x2: n38/41/77/78/79, DL/UL 256QAM

● In 4G, Category 20 256 QAM download up to 2 Gbps and upload up to 150 mbps (depending on operator network), aggregation up to 5 frequencies at a time. LTE 4x4 B1/3/7/38/39/40/41/42/43, LTE 2x2 B5/8/20/28/32/34

● 2G and 3G are not supported on this model

● Wi-Fi 6 AX3000 2x2 MIMO 802.11a/b/g/n/ac/ax in 2 bands, 4Ghz and 5Ghz up to 128 connected users.

● 11dBi high gain 5G NR internal antenna.

● No antenna port for 5G external antenna connection.

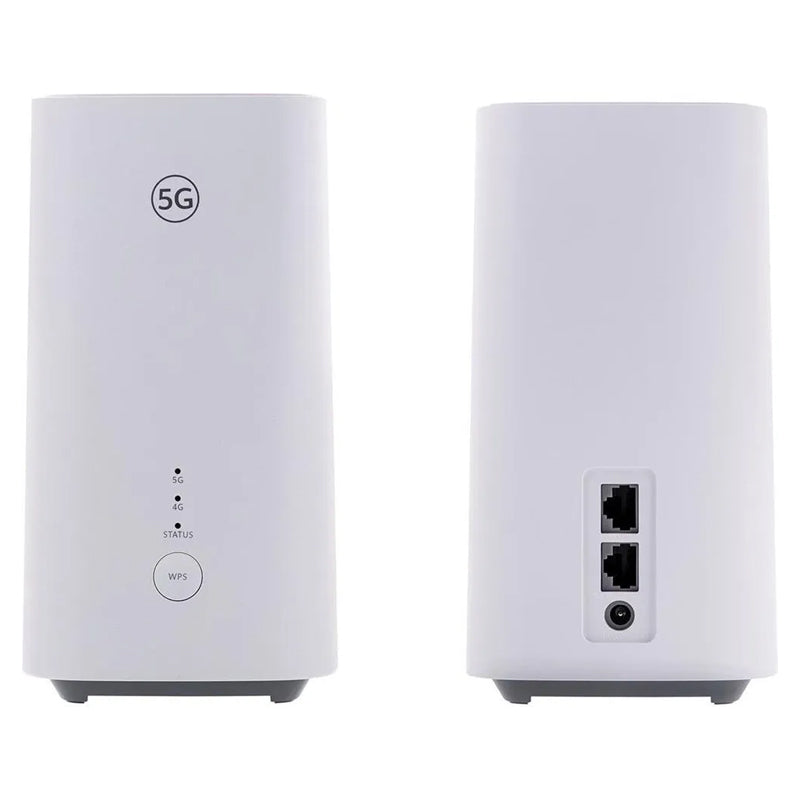

● 2 Gigabit RJ45 ports

● Complete interface for experts: Bridge mode, IP and MAC address reservation, Frequency selection, Router IP change, Guest WiFi mode, DDNS, Integrated L2TP PPTP VPN client, supports SMS reception and transmission.

● Information page with Cellid, RSRP, RSRQ and SINR to know the signal strength and the transmitter you are depending on.

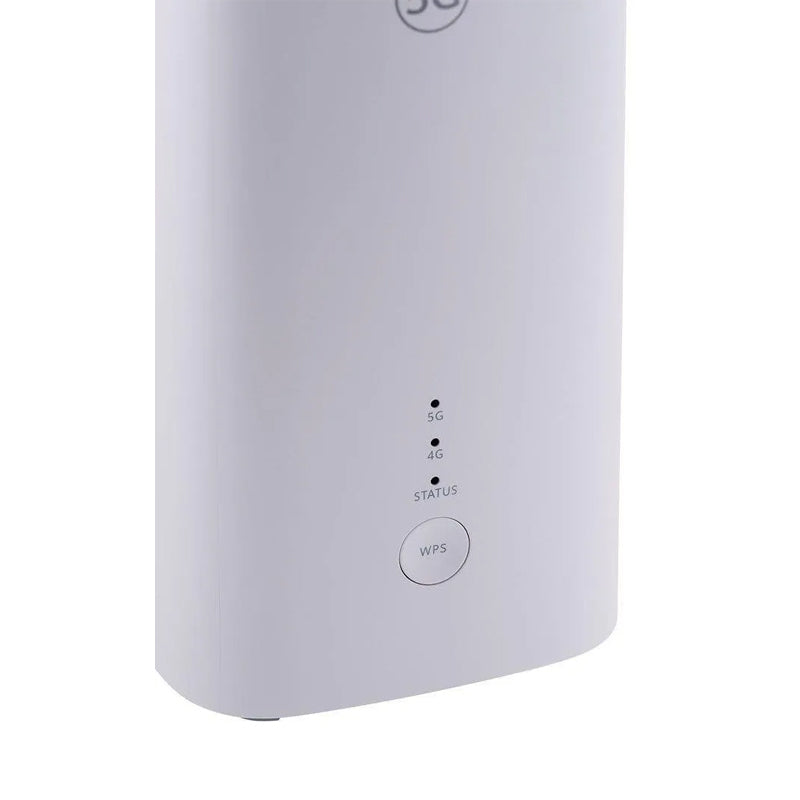

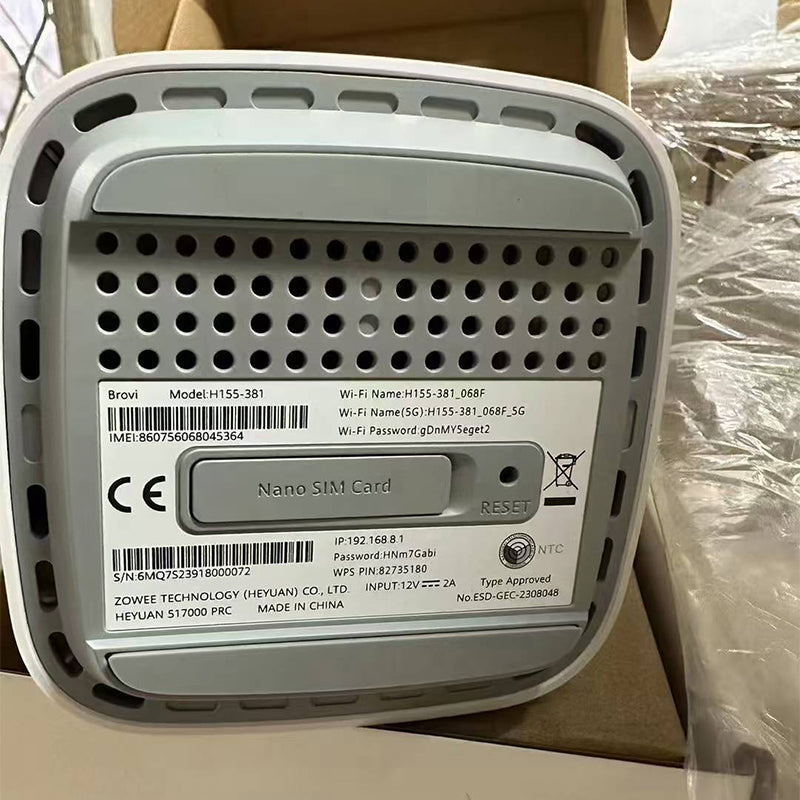

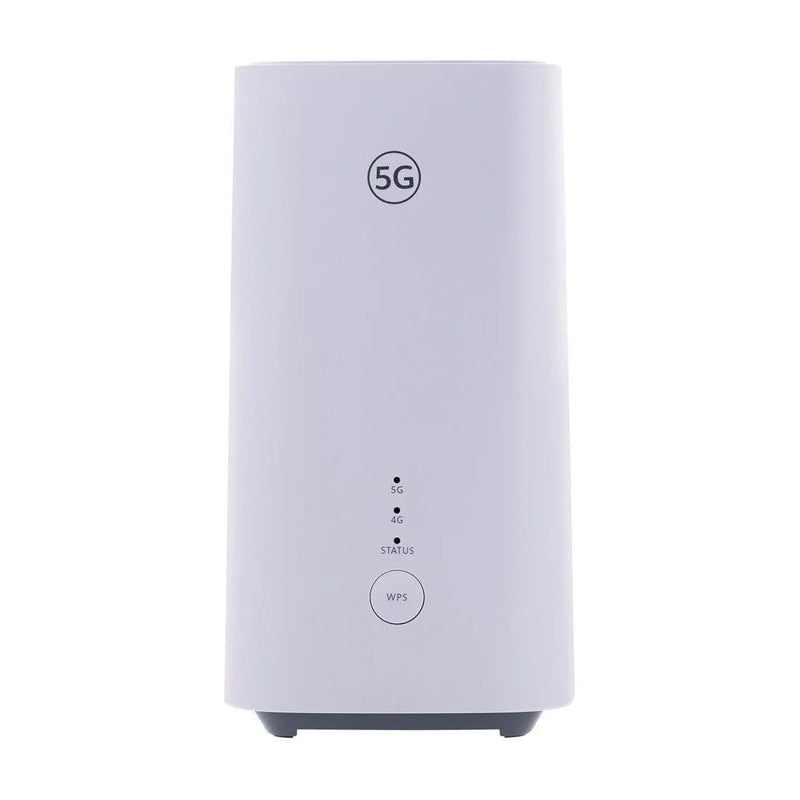

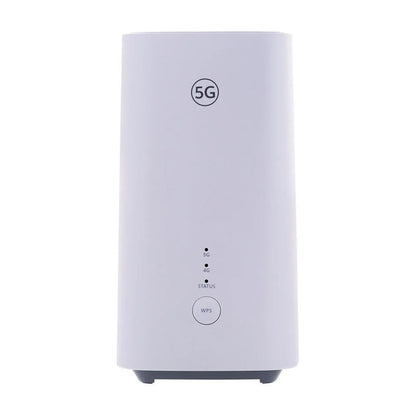

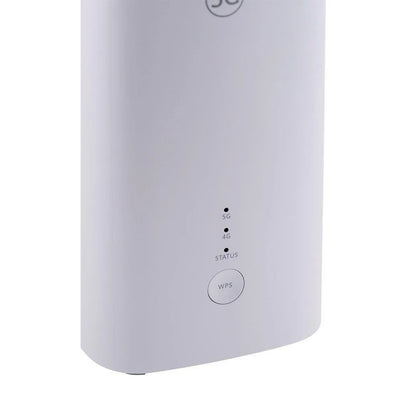

● Slot for NanoSIM 4FF sim card, 1 Power button, 1 WPS button, 1 RESET button, 1 5G LED, 1 4G LED, 1 Status LED.

● Dimensions (cm): 9.9 x 10.7 x 21.5 (h).

● Router weight: 915g, Color White

● Maximum consumption: < 24W , Operating temperature: 0°C to 40°C, storage temperature: -20°C to +70°C

Highlight

● 5G DL 3.6Gbps/UL 500Mbps

● 11dBi high gain 5G NR internal antenna

● Support up to 128 WiFi users

● WiFi 802.11a/b/g/n/ac/ax in 2 bands

● 3GPP Release 16, LTE DL cat 20/UL cat 18

Huawei Huawei 5G CPE 5 H155-381 Specifications

● Product type: 5G Indoor WiFi Router

● Networks: 5G NSA/SA

● 3GPP Release 16, LTE DL cat 20/UL cat 18

● Frequency bands
- 5G: n1, n3, n5, n7, n8, n20, n28, n38, n40, n41, n75, n77, n78, n79
- 4G: B1, B3, B5, B7, B8, B18, B19, B20, B26, B28, B32, B34, B38, B39, B40, B41, B42, B43

● Download / Upload speed
- 5G: 3.6Gbps / 500 Mbps

● Antenna type
- 11dBi high gain 5G NR internal antenna.
- No antenna port for 5G external antenna connection

● Wi-Fi
- AX3000 2×2 MIMO 802.11a/b/g/n/ac/ax in 2 bands, 4G+5G
- 2×2 MIMO, Maximum transmission rate 574 Mbps,
- 5GHz Wi-Fi 2×2 MIMO, Theoretical maximum transmission rate 2400 Mbps
- Support up to 128 users(64+64)

● WI-FI 6 speed：3600Mbps

● MIMO:
- DL MIMO 4×4: n1/3/7/38/40/41/77/78 /79.
- 5G 2×2 MIMO; n5/8/20/28/71; UL MIMO 2×2: n38/41/77/78/79

● Interfaces
- One Power adapter port
- One GE Lan/WAN port (RJ45)
- One GE Lan Port (RJ45)
- One SIM card slot (Nano-SIM)

● Built-in L2TP/PPTP VPN client.

● Operating temperature: 0°C to 40°C

● Storage temperature: -20°C to +70°C

● Power consumption: 24 W
