HUAWEI 5G CPE 5s H153-381 WiFi 6 AX3000 Wireless Gateway Router
HUAWEI 5G CPE 5s H153-381 WiFi 6 AX3000 Wireless Gateway Router
Prix habituel
$239.00
Prix habituel
$299.00
Prix promotionnel
$239.00
Prix unitaire
/
par
Frais d'expédition calculés à l'étape de paiement.
Impossible de charger la disponibilité du service de retrait
HUAWEI 5G CPE 5s H153-381 is a 5G wireless gateway for multiple users in household or small office environments. It enables users to access the Internet.
The H153-381 supports 3GPP Release 16 with LTE UE downlink category 18 and uplink category 18. The supported service functions are as follows:
● Working band:
- 5G: n1/n3/n5/n7/n8/n20/n28/n38/n40/n41/n77/n78/n80/n81/n82/n83/n84,
- LTE: B1/B3/B5/B7/B8/B20/B28/B38/B40/B41/B42/B43
● Wi-Fi:
- 802.11 b/g/n/a/ac/ax
- 2.4GHz Wi-Fi up to 574 Mbps, 5GHz Wi-Fi up to 2400 Mbps
- Maximum Users: 64+64
● Multi APN function (Customization) for Data, Voice(VoIP), TR-069 services
● Routing mode: NAT enable (Default) / IP pass-through
● VPN client service (L2TP, PPTP)
● Customer management via WebUI
● Operator maintenance via TR-069 and TR-143
● Firmware Over the Air (FOTA)
● 5GHz Wi-Fi preferred
Product Status
- Unlocked global sim card
- New, but we might open box to test before shipping
Technical Specifications
Hardware Specifications
● Technical Standard
- WAN: 3GPP Release 16; LTE DL Cat18/UL Cat18
- LAN: IEEE 802.3/802.3u
- Wi-Fi: IEEE 802.11b/g/n/a/ac/ax
● Working band/frequency
- 5G: n1/n3/n5/n7/n8/n20/n28/n38/n40/n41/n77/n78/n80/n81/n82/n83/n84
- 4G LTE: B1/B3/B5/B7/B8/B20/B28/B38/B40/B41/B42/B43
● Wi-Fi:
- 2.4GHz: 2400-2483.5 MHz;
- 5GHz: 5170-5350MHz, 5490-5710MHz, 5735-5850MHz
● DL MIMO
- 5G 4x4: n1/n3/n7/n28/n38/n40/n41/n77/n78
- 5G 2x2: n5/n8/n20
- LTE 4x4: B1/B3/B7/B28/B38/B40/B41/B42/B43
- LTE 2x2: B5/B8/B20
● UL MIMO
- 5G 2x2: n38/n40/n41/n77/n78 (UL MIMO is supported only in SA mode.)

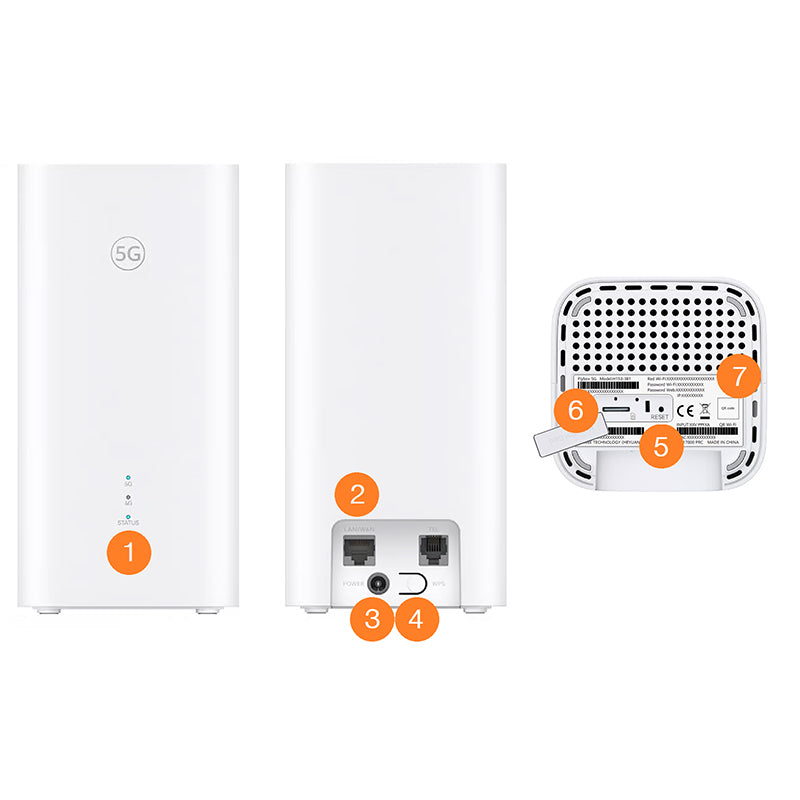

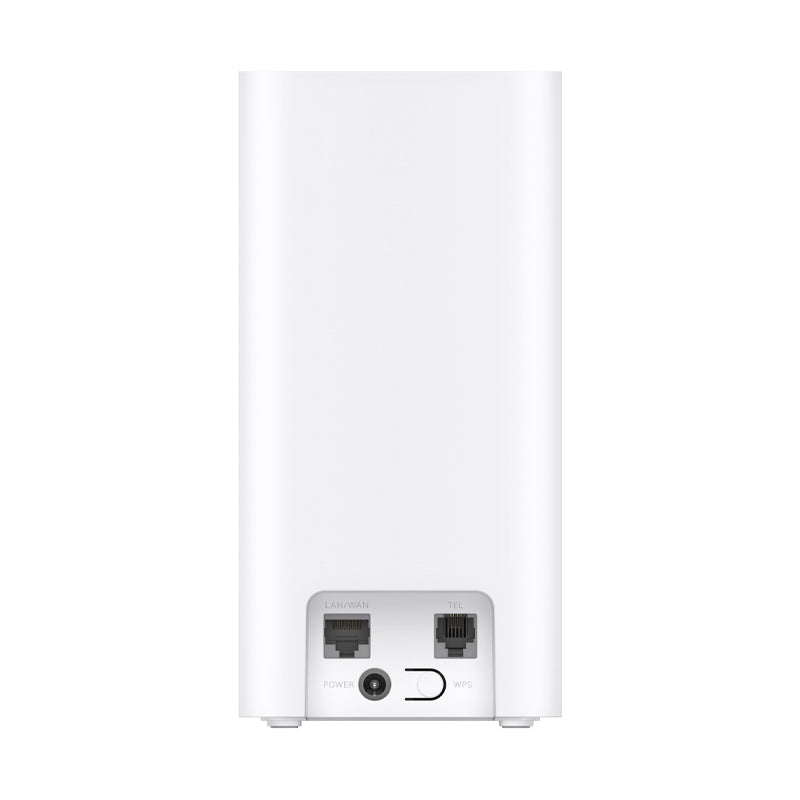

● External Port
- One power adapter port
- One GE LAN/WAN port (RJ45)
- One port for Voice (RJ11)
- One SIM card slot (Nano-SIM)
● Antennas
- Built-in 5G/LTE antennas
- Built-in Wi-Fi 2.4 GHz and 5 GHz antennas
● LED Indicators
- One 5G indicator
- One 4G indicator
- One Status indicator
● Buttons
- One WPS button (Reuse with the power-off button)
- One Reset button
● Maximum transmit power
- 5G: Conform to 3GPP Definition
- 4G: Conform to 3GPP Definition
● Power consumption: ≤24 W
● AC/DC power supply
- AC (input): 100V-240V 50Hz/60Hz
- DC (output): 12V/2A
● Dimensions & Weight: 90*90*183mm, 440g
● Temperature
- Working temperature: 0°C to 40°C
- Storage temperature: -20°C to +70°C
- 5% – 95% (non-condensing)
● Certification/Compliance: CE /RoHS/REACH/WEEE/Wi-Fi/ErP certification
Software Specifications
● 5G features: DL 256 QAM, UL 256QAM
● LTE features: DL 4x4 MIMO, DL 256 QAM，UL 256 QAM.
● Mobile network: APN management, APN auto adapter.
● VPN client: Supports L2TP/PPTP VPN client
● Router:
- Supports the default route
- Supports manual configuration of LAN IP addresses
- Supports Address Resolution Protocol (ARP)
● DHCP server
- The DHCP server can be enabled or disabled
- The address pool of the DHCP server can be configured
- The lease can be configured
● NAT
- Supports NAT and NAPT
- Supports cone NAT
● SMS
- Writing/sending/receiving
- Writing/sending/receiving extra-long messages
● Firewall setup
- Firewall enable/disable
- MAC Address Filter
- IP Filter
- Virtual server
- Special Applications
- DMZ settings
- SIP ALG settings
- UPnP settings
- NAT settings
- Domain Filter
● LAN
- 10/100/1000 Mbps auto-negotiation
- MDI/MDIX auto-sensing
- IEEE 802.3/802.3u-compatible
● Security mode
- Open
- WPA2-PSK
- WPA3-SAE
- WPA/WPA2-PSK
- WPA2-PSK/WPA3-SAE
