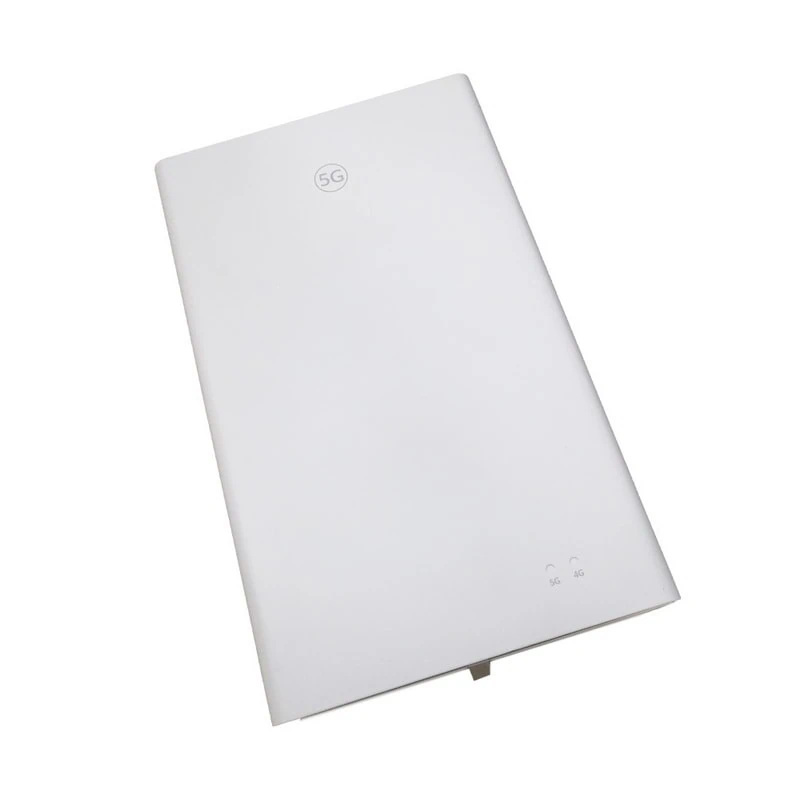

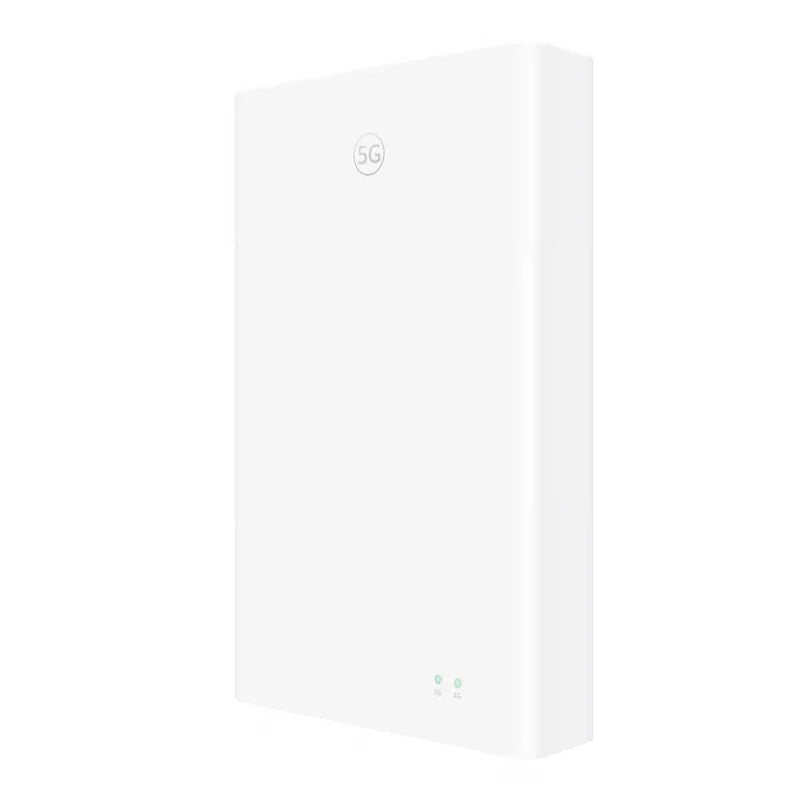

Huawei 5G CPE MAX 5 H352-381 POE Outdoor Modem

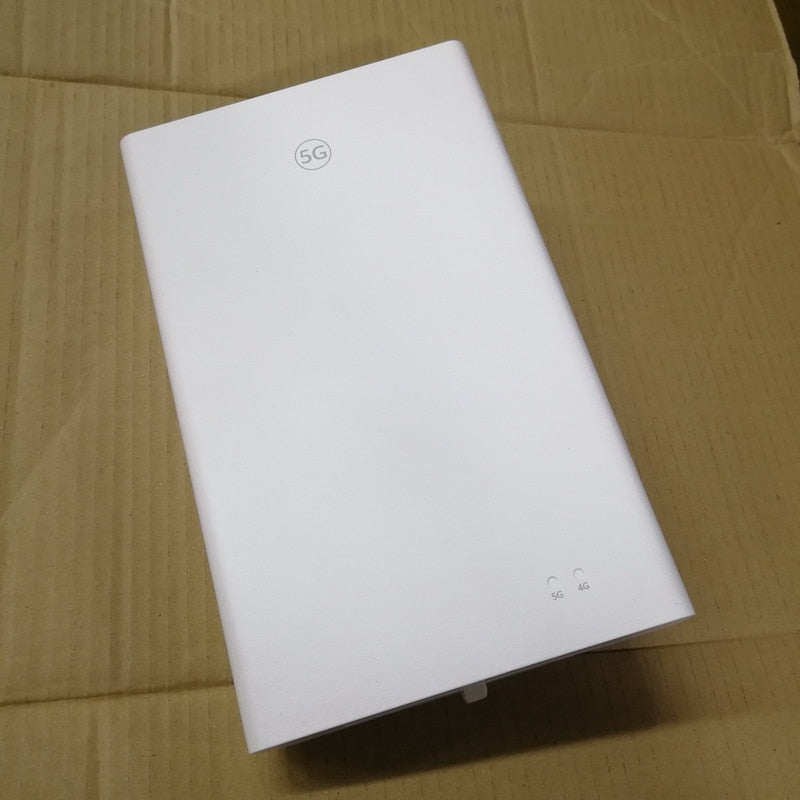

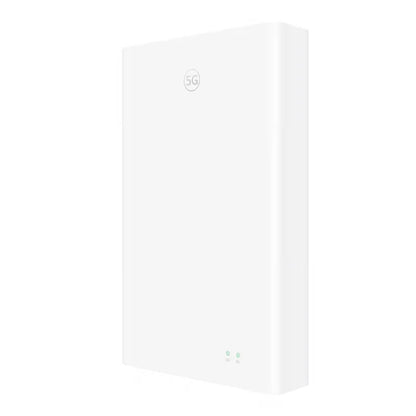

HUAWEI 5G CPE Max 5 (H352-381) is a high-performance, weatherproof outdoor 5G router. The compact router supports both 5G NSA and SA modes, offering 5G download speeds of up to 5.4Gbps and 2.5Gbps on 4G CAT 20. The 5G router acts as both a mobile modem and a Wi-Fi 6 access point.

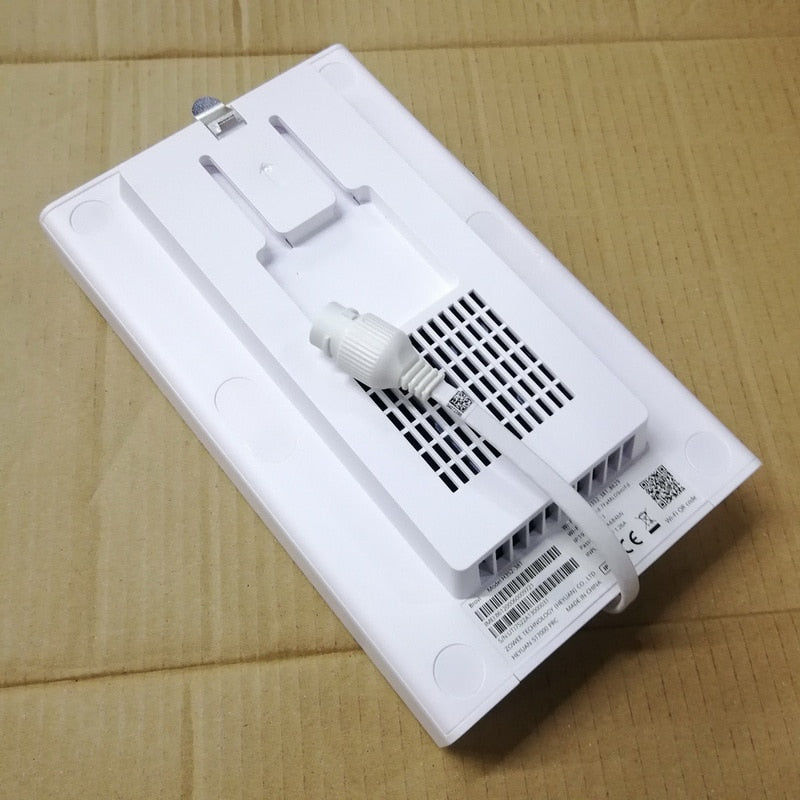

The Huawei 5G CPE MAX 5 features 4x4 MIMO high-gain antennas with a peak gain of 10.5 dBi on the 5G bands. The outdoor router has a PoE (Power over Ethernet) port for easy powering. It also has an additional RJ45 LAN port that can be used to directly connect an additional router or other device.

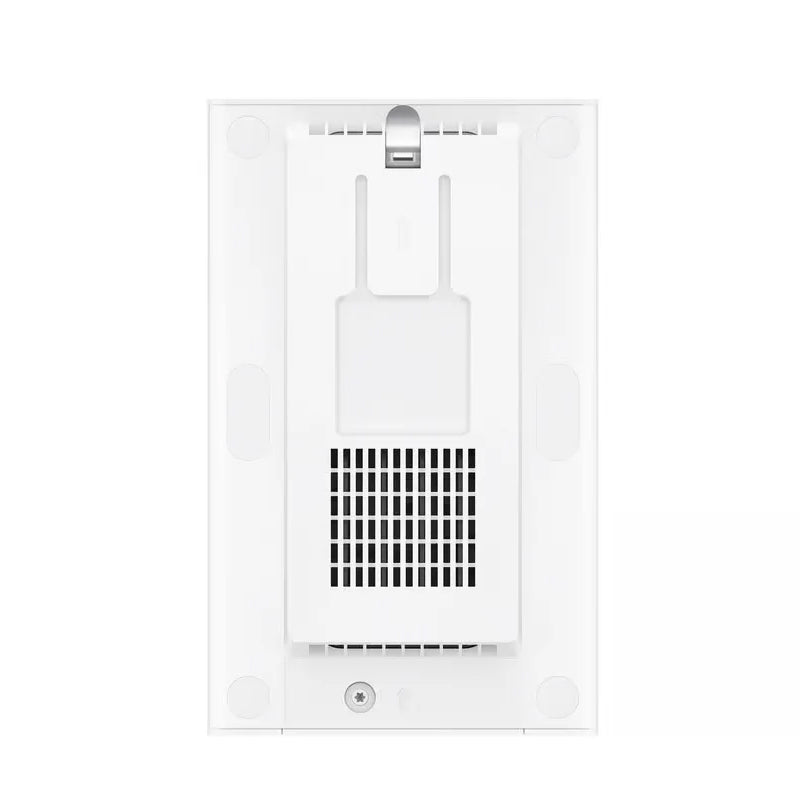

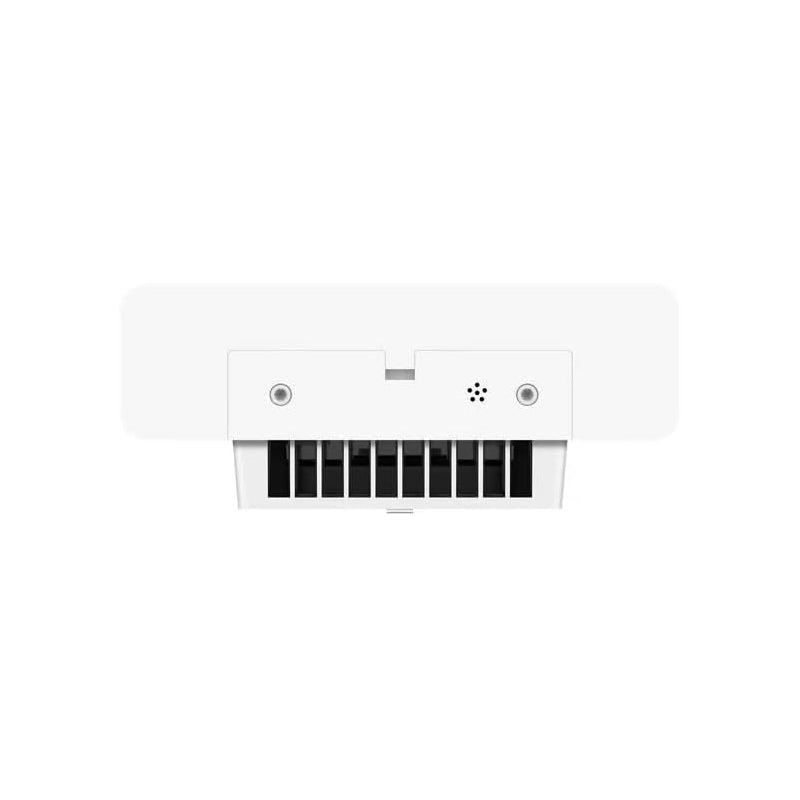

The Huawei 5G CPE has a dust and waterproof IP65 enclosure. This means it can withstand harsh weather conditions and be used outdoors. The included mounting brackets make it easy to mount the router on a pole or wall.

Product Status:

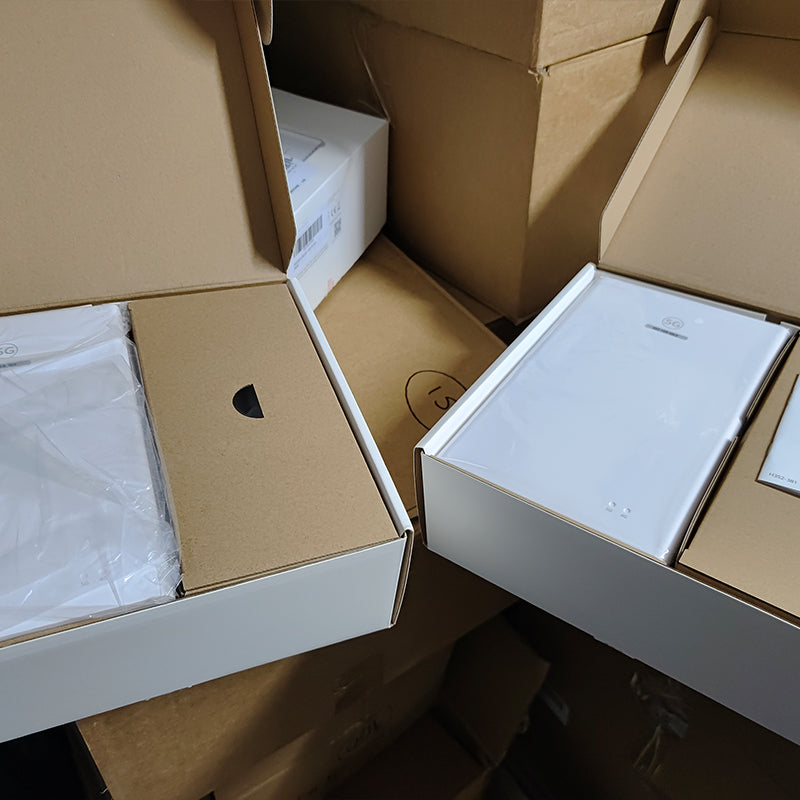

• New in 100%, Unlocked, we might open the box to test it before shipment, so you might see it's openned-box, kindly noted.
• Works in Europe, Asia, Middle East, Africa, Australia, Brazil, Chile.

HUAWEI 5G CPE MAX 5 H352-381 (Brovi) Key Features:

• Compatible with 5G frequencies in NSA and SA mode in bands n1/3/5/7/8/20/28/38/40/41/75/77/78/79/80/81/82/83/84 and 4G in bands B1/3/5/7/8/18/19/20/26/28/32/34/38/39/40/41/42/43.
• In 4G, Category 20 256 QAM download up to 2 Gbps and upload up to 150 mbps, aggregation up to 5 frequencies at a time. LTE 4x4 B1/3/7/38/39/40/41/42/43, LTE 2x2 B5/8/20/28/32/34.
• 2G and 3G are not supported on this model.
• Wi-Fi 2.4Ghz 1*1 MIMO Theoretical maximum 32 users, WPA/WPA2-PSK
• Internal 4G / 5G antenna.
• TD Tech N660 Chipset Processor
• 1 RJ45 ethernet port
• Information page with Cellid, RSRP, RSRQ and SINR to know the signal strength and the transmitter you are depending on.
• Support receiving and sending SMS, up to 5000 SMS stored. Traffic statistics, MAC address filtering, Anti-brute force Cracking, Firewall, DoS Attack Protection, L2TP VPN client, PPTP VPN client, NAT, DMZ/Port Mapping, DNS, IPv6/IPv4 dual stack and IPv4 only.
• Antenna modem: NanoSIM 4FF sim card slot, 1 Power port, 1 RESET button, 1 5G LED, 1 LED

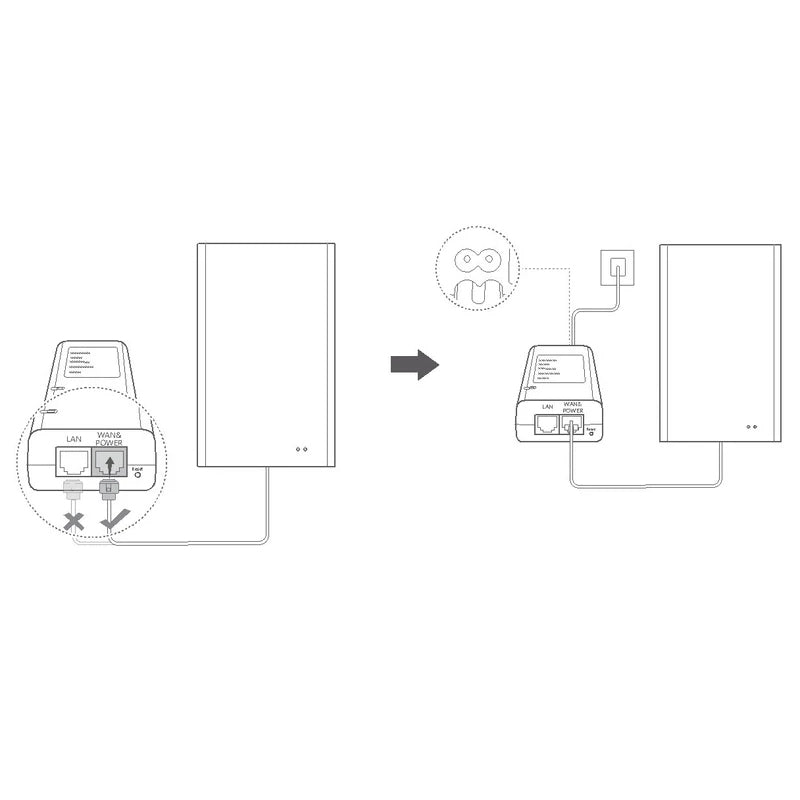

• POE injector (PSU): 1 x Power button and 1 x Reset button
• Dimensions (cm): 14.2 (w) x 23 (h) x 5.8 (Deep)
• Router weight: 1000g
• Color White
• Maximum consumption: < 24W , power supply specifications: AC 100V ~ 240V, DC 19 V/1.26 A , Operating temperature: -40° C to 55° C (without solar radiation), -40° C to +50° C (with solar radiation), storage temperature: -40°C to +70°C
• Possibility to use the Huawei AI Life app available via Hicloud, AppGallery or Apple Store, or configure the product via WebUi 192.168.118.1.
• OTA update from the interface.

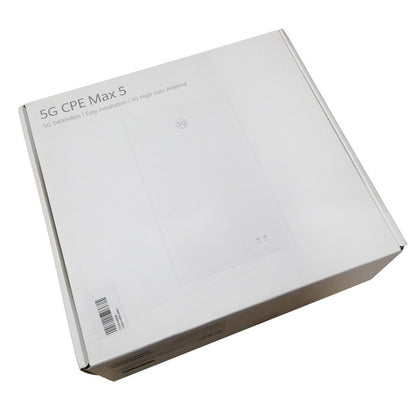

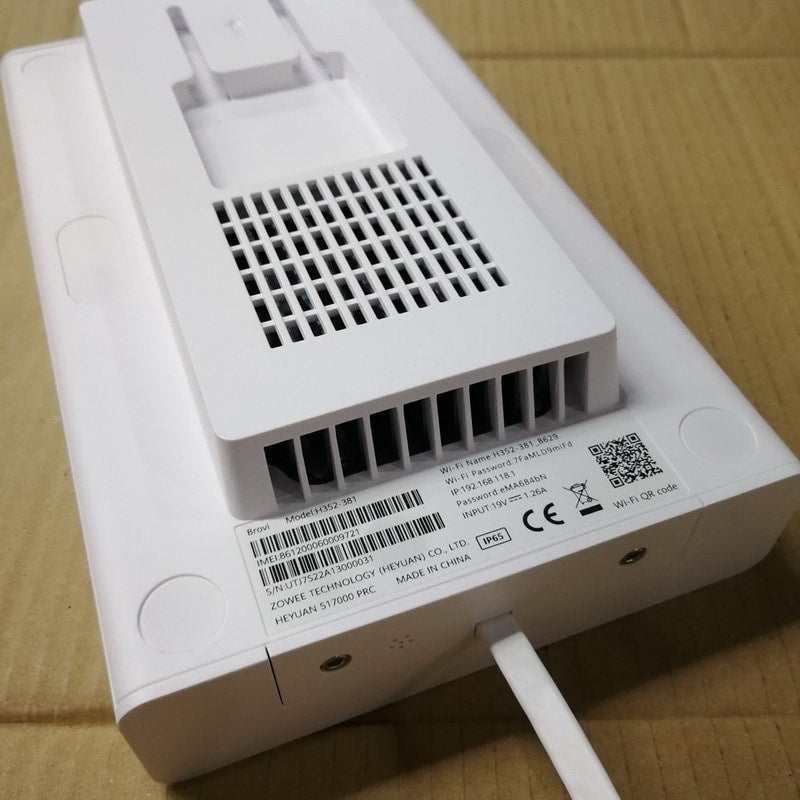

• Package: 1 x H352-381 Router 51060JBM (made by Huawei, Brovi Brand, Zowee Technology Heyuan) 5G CPE MAX 5.

Huawei H352-381 5G CPE Max 5 Specifications

Product type: 5G Outdoor CPE

Networks: 5G NSA/SA, 4G LTE CAT20

Frequency bands

• 5G: n1, n3, n5, n7, n8, n20, n28, n38, n40, n41, n75, n77, n78, n80, n81, n83, n84
• 4G: B1, B3, B5, B7, B8, B18, B19, B20, B26, B28, B32, B34, B38, B39, B40, B41, B42, B43

Download / Upload speed

• 5G: 5.4 Gbps / 500 Mbps
• 4G: 2 Gbps / 150 Mbps

Antenna type

• Internal omni-directional 5G/4G antennas, 4x4 MIMO
• Internal Wi-Fi antenna

Interfaces

• 1x RJ45 port
• 1x PoE port
• 1x Nano-SIM card slot
• Reset button
• Power button
• 5G signal LED
• 4G signal LED

Wi-Fi: 2.4Ghz 1*1 MIMO, 150Mbps, 32 users.

Secure: WPA/WPA2-PSK
