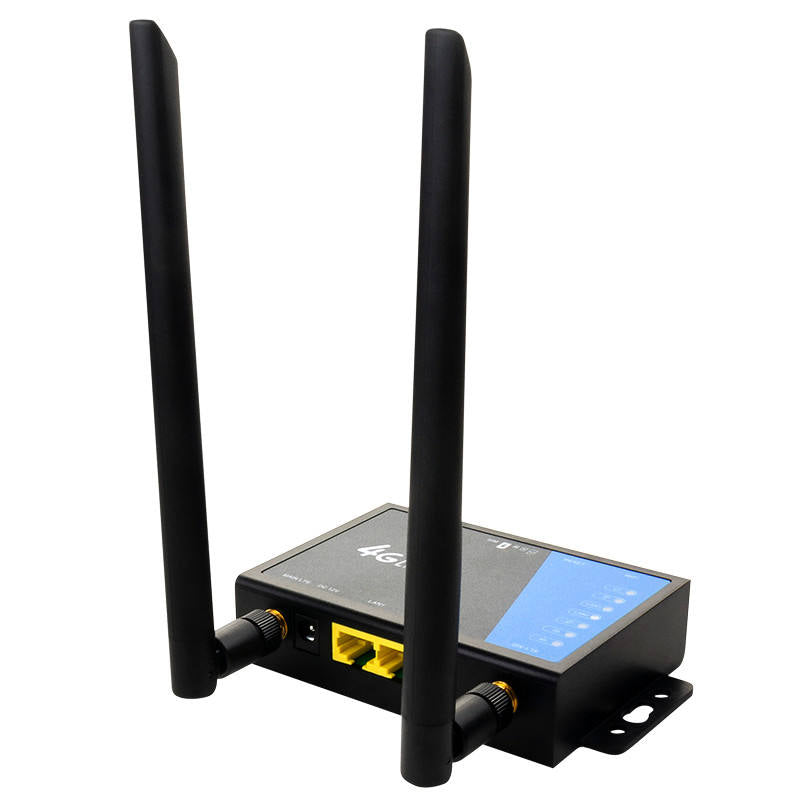

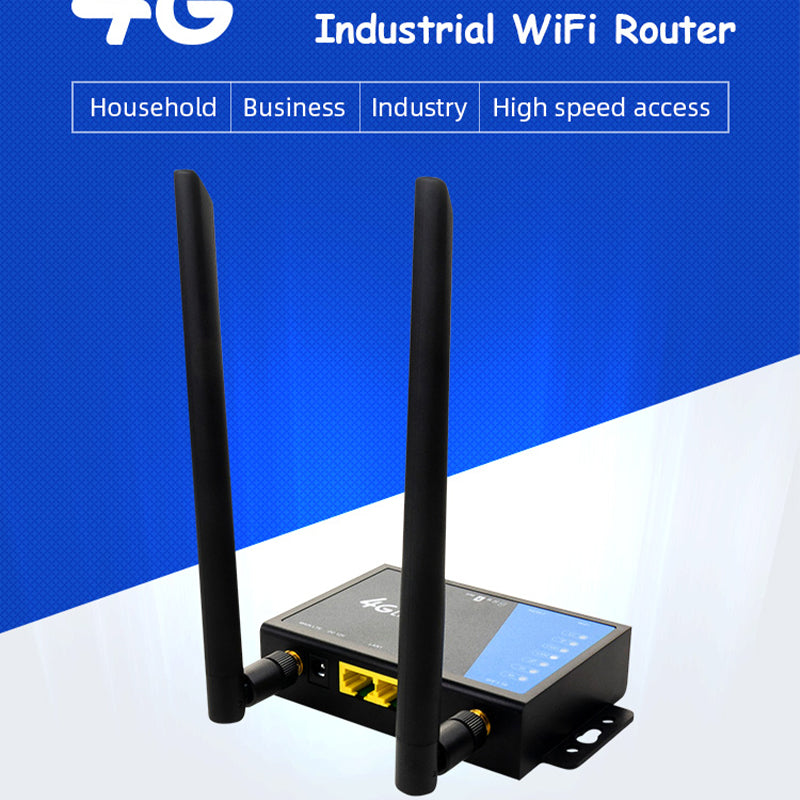

Industrial 4G Sim Wireless Router LT220A With External Antennas

This device is a high-performance 4G broadband wireless router, supporting the maximum DL / UL rate of 150 / 50Mbps. it provides high-quality data communication and optimized WiFi data transmission. Diversified WiFi standards and encryption modes ensure the safety and stability of the product.

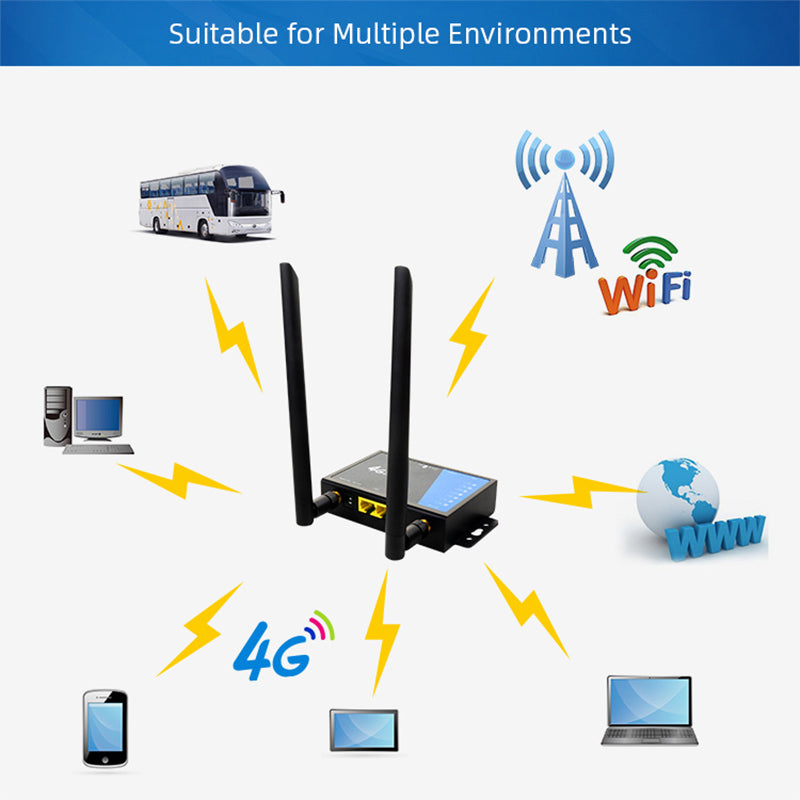

With a variety of working modes ( 4G to cable), rich network protocols and reliable connections, it can be widely used in business and home. It has the function of regular restart and firewall protection. The built-in hardware watchdog can effectively prevent the system from crashing during operation. Built in dual firmware can automatically recover the system due to software upgrade failure or abnormal startup caused by software.

Product specification

• Dual network interface design, can provide wired network for other equipment.
• Plug in the SIM card to easily provide a network for the device.

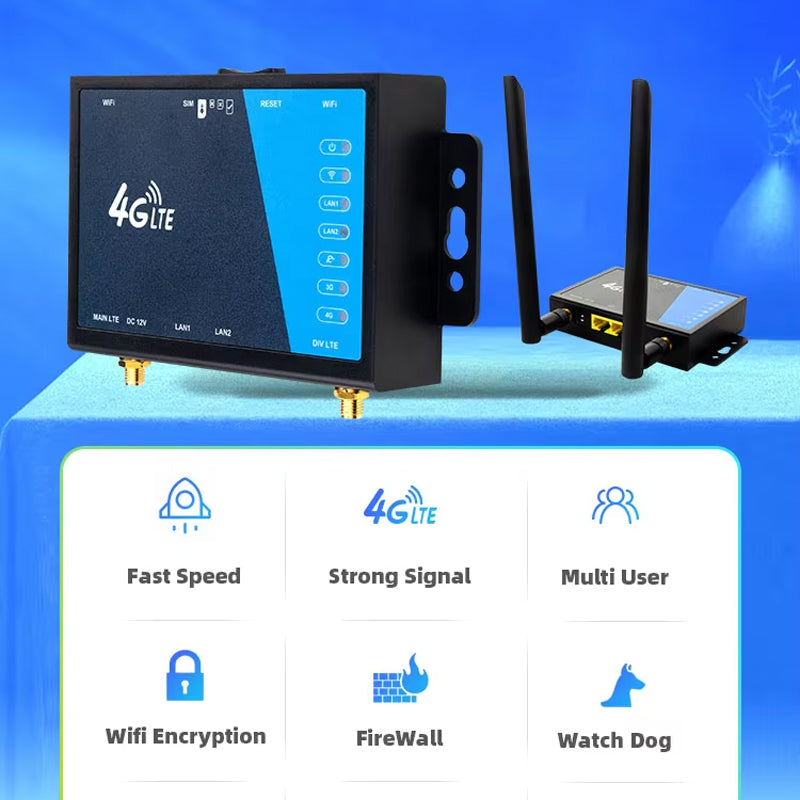

• Regular restart and firewall protection
• Built in hardware watchdog, built-in dual firmware, stable operation.

4G Industrial Router Technical Data

Base Info

• Product name: 4G Industrial CPE
• Model name: LT220A
• 4G LTE: Cat4

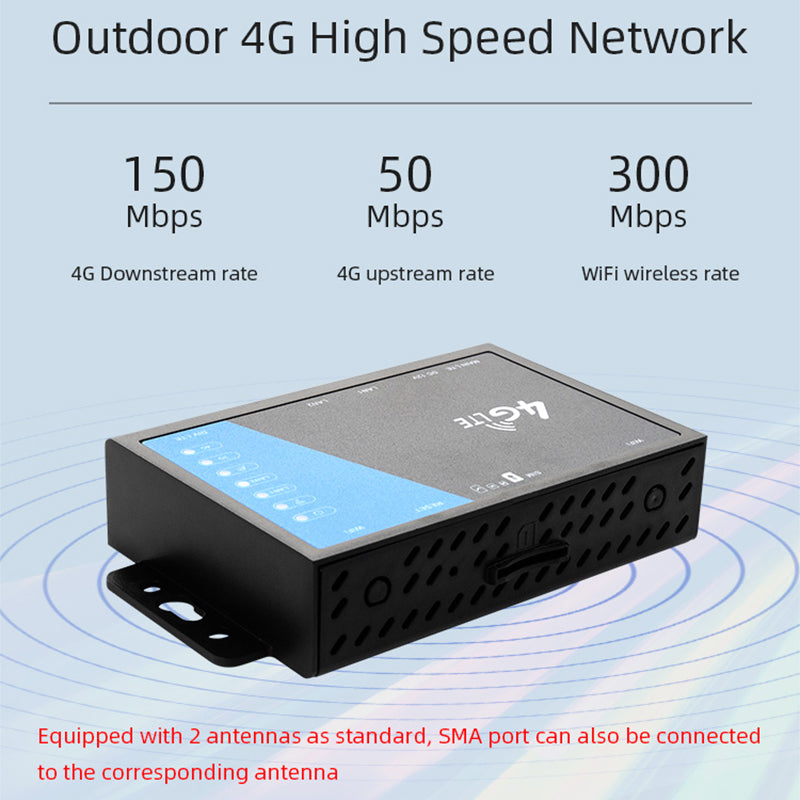

• Speed: Download 150Mbps / Upload 50Mbps
• Routing and WiFi chipset supplier: MTK
• Routing and WiFi chipset model: MT7628N
• DDR/SPI: 64MBytes / 16MBytes

WiFi

• IEEE 802.11 b/g/n
• WiFi bands: 2.4GHz
• WiFi security: WPA/WPA2
• WiFi Users: 32 max
• WiFi Speed: up to 300Mbps

Product Status

• New and unlocked
• Work in Middle East, Europe, Asia, Australia, Africa, Brazil, Chile.

Packing List

• 4G Industrial CPE LT220A*1
• External Antennas *2
• RJ45 Ethernet Cable *1
• EU/UK/US Power Adapter *1

Radio Frequency

• Main antenna: Internal antenna
• Receive diversity antenna: Internal antenna
• WiFi band: 2400MHz-2483.5MHz
• MIMO for WiFi: 2dbi X 2

Max. transmitter power for WiFi

• 802.11b   24dBm±2dBm;
• 802.11g   16dBm±2dBm;
• 802.11n   15dBm±2dBm;

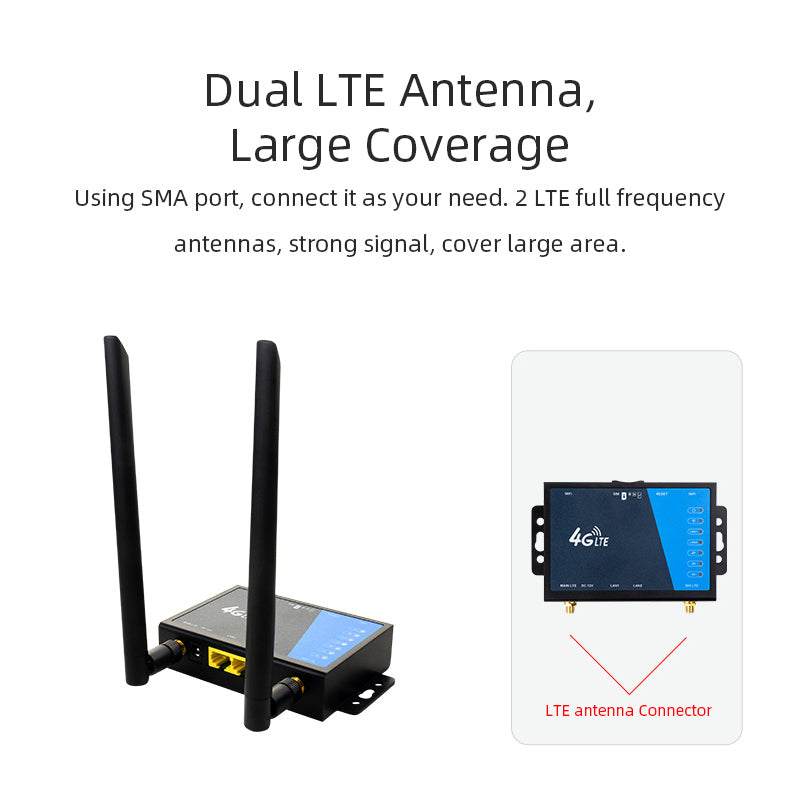

Antennas

• 2 Pieces External Antennas
• LTE External Connector

Bands:

• 4G LTE FDD: B1 / B3 / B5 / B7 / B8 / B20 / B28
• 4G LTE TDD: B38 / B40 / B41
• WCDMA: B1 / B5 / B8

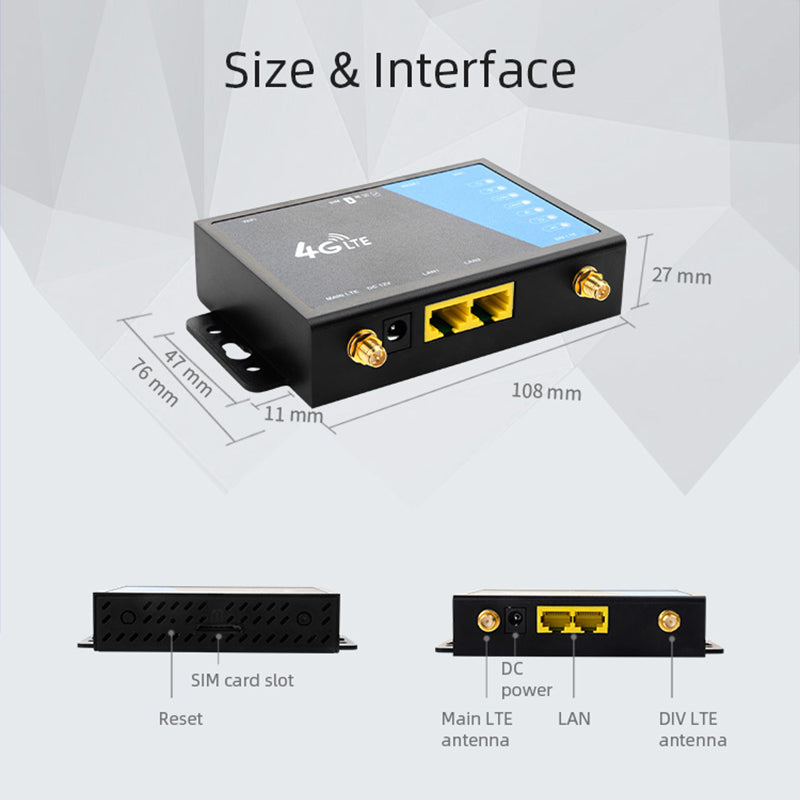

Interface

• Network: 2*LAN
• SIM: 2FF Sim
• Button: Reset
• DC Adapter: Input voltage 12V-1A

Software

• Language: Support English
• APN Setting: Supported
• Device Settings: Supported
• WIFI Settings: Supported
• Routing Settings: Supported
• Firewall Settings: Supported

Environment

• Operating temperature: 0 to 50° C
• Storage temperature: -40 to 70° C
• Humidity: 5% to 95%
