IP65 4G Outdoor CPE H5 LTE CAT4 WiFi Router POE Power

Outdoor Waterproof 4G Router

• WiFi 300Mbps
• 32 Users Max
• 4G FDD&TDD
• POE Power Supply
• Built-in 5dBi Antenna
• LEDE System

Solve the following problems for you

• No Internet access in mobile places such as ships /RVs
• Due to force maleure reasons,the original network was interrupted and there was no way to go online
• Scenarios such asinability to pull broadband outdoors require monitoring

4G LTE FDD & TDD

• Support many frequency bands of FDD and TDD to meet the internet access needs of different regions.

WiFi for various terminal devices

• Allows up to 32 Users to access the Internet at the same time

Smart WiFi chip

• Smart chip, covering 50-100 meters, rapid and stable network

Suitable for various outdoor scenes

• Family internet
• Ship wireless coverage
• RV wireless coverage

POE Power supply

The 24V 1A POE power supply supplies power to the device,and the POE port of the POE power supply is connected to the WAN port of the device.

• POE power to power the device, 4G to WiFi

The POE port of the POE power supply is connected to the CPE device, and the LAN is not connected. lt just supplies power to the CPE equipment, and the CPE directly transmits wifi for other terminals to connect to the network.

• POE power supply, CPE equipment 4G to wired

CPE converts 4G to cable, and then cable to cable

• CPE will switch 4G to wired, wired to WiFi

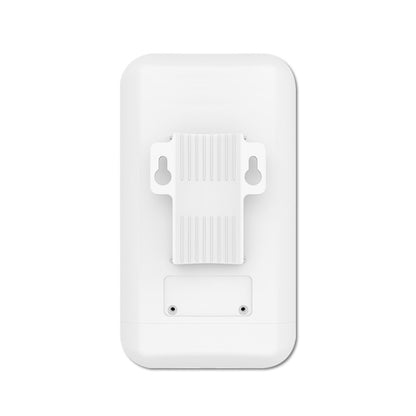

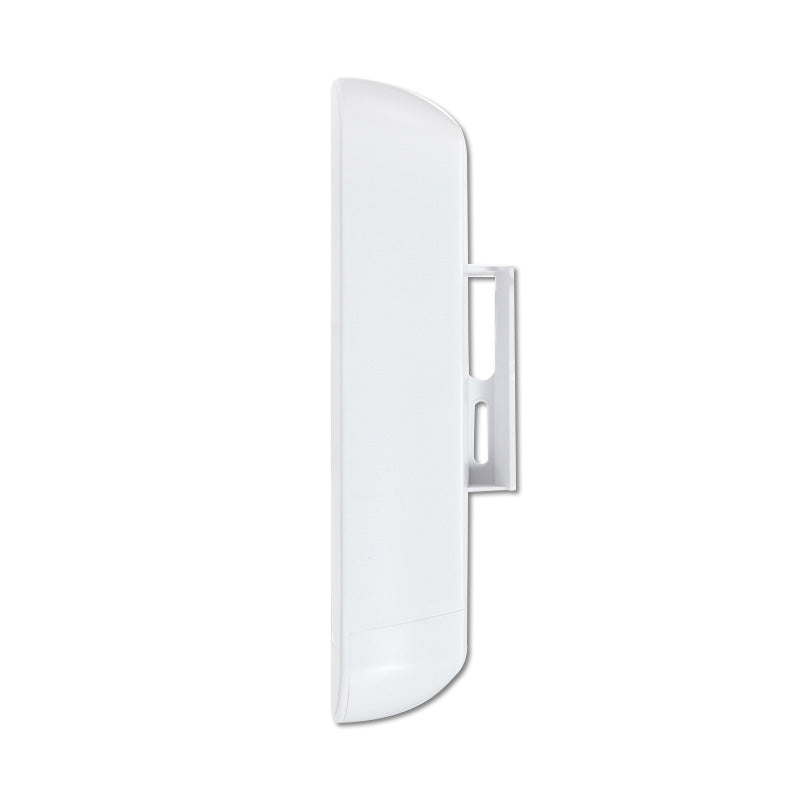

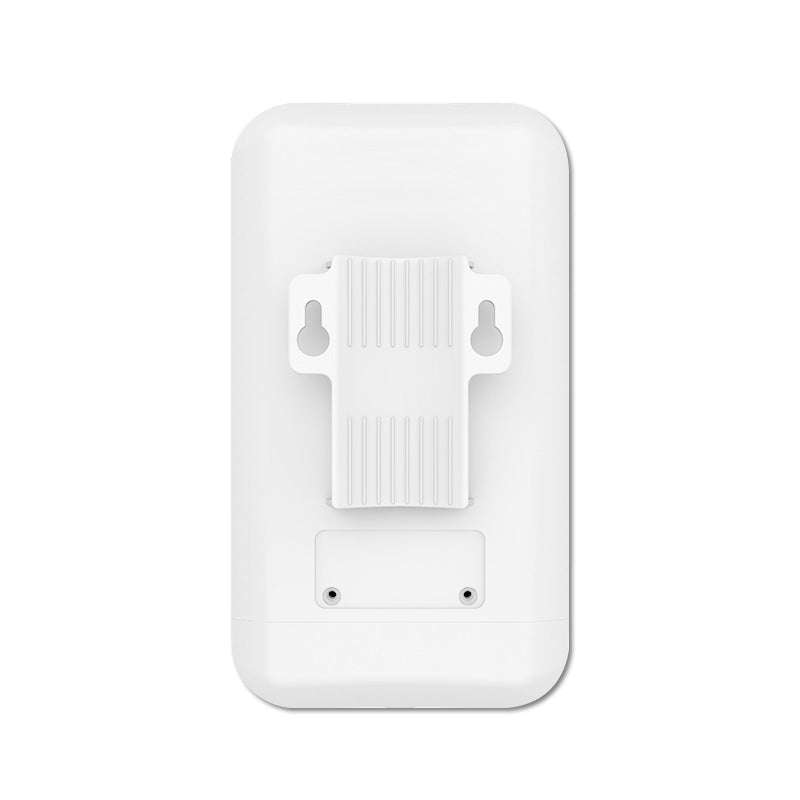

Pole Mounting

Pole-mounted installation, simple and convenient operation,high outdoor protection level, easy to cope with various outdoor harsh environments

• Waterproof
• Dust-proof
• Lightning protection
• High and low temperature resistance

Built-in 5dBi antenna

• Built-in omnidirectional 5dBi antenna, can cover a radius of 50-100 meters, stable signal transmission speed, and meet outdoor Internet needs

WiFi Max 300Mbps

• Watch high-definition videos, play games, watch VR movies,300Mbps, whatever you want, play as you want

4G Outdoor Router Parameter

• MTK Chipset: MT7628NN

• Storage: 512Mb DDR2 SDRAM

• Supported frequency band


1. FDD: B1/3/5/8 TDD:B38/39/40/41

2. WCDMA: B1/5/8 TDSCDMA:B34/39

3. CDMA & EVDOBC0GSM: 850/900/1800/1900


• Wi-Fi: IEEE 802.11b/g/n

• Encryption: WPA-PSK/WPA2-PSK mixed mode

• WiFi Transfer rate: up to 300Mbps

• LED WIFI light: 4G light,power light

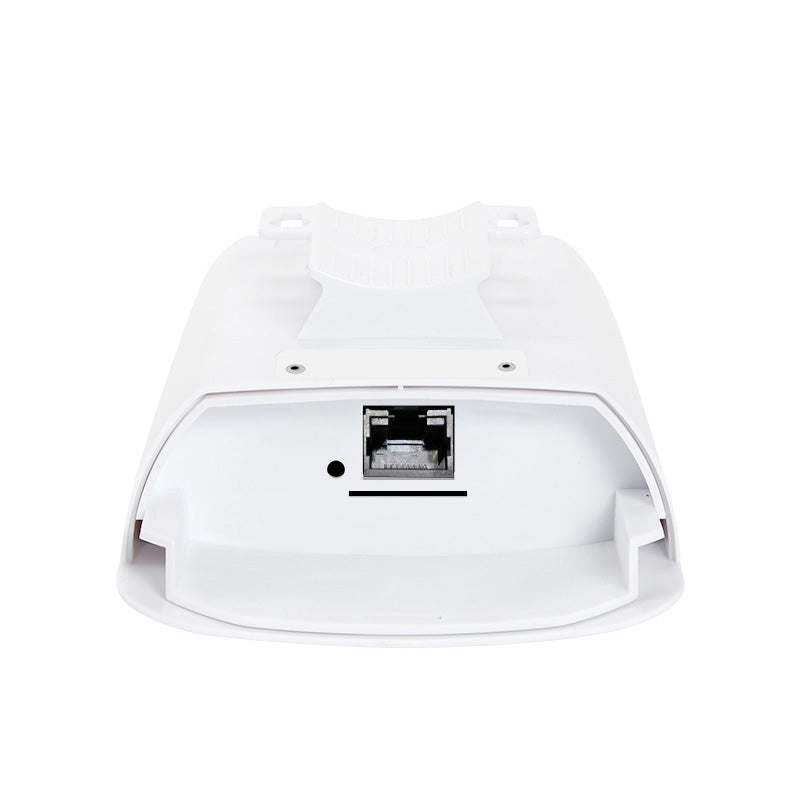

• RJ-45: One network cable interface

• power supply: POE power supply(24V/1A)

• SIM: Standard SIM middle card(6PIN)*1MICRO SIM*1

• KEY: Power on

• Dimension (L×W×H)mm: 197*110*59

• Weight: 300g

• Wi-Fi: WiFi AP,supporting up to 32 clients

• WIFI name SSID: 4G-WIFI-XXXX

• WIFI default password: 12345678

• Work Browser: Internet Explorer 8.0, Mozilla Firefox 40.0, Google Chrome 40.0, Safarior above gateway: http://192.168.1.1

• Sign in: User name: admin Default password: admin

• System: 4G connections tatus: network connection status;DHCP server status; system state

• Basic settings: 4G settings (network,country,operator),WAN mode(DHCP,PPPoE,staticIP)

• Advanced setting: IP penetration, LAN, staticrouting, portforwarding, DMZ, MAC address filtering, do main name filtering, firmware upgrade, backup, recovery, management password, language, regular restart, restart, factory recovery.
