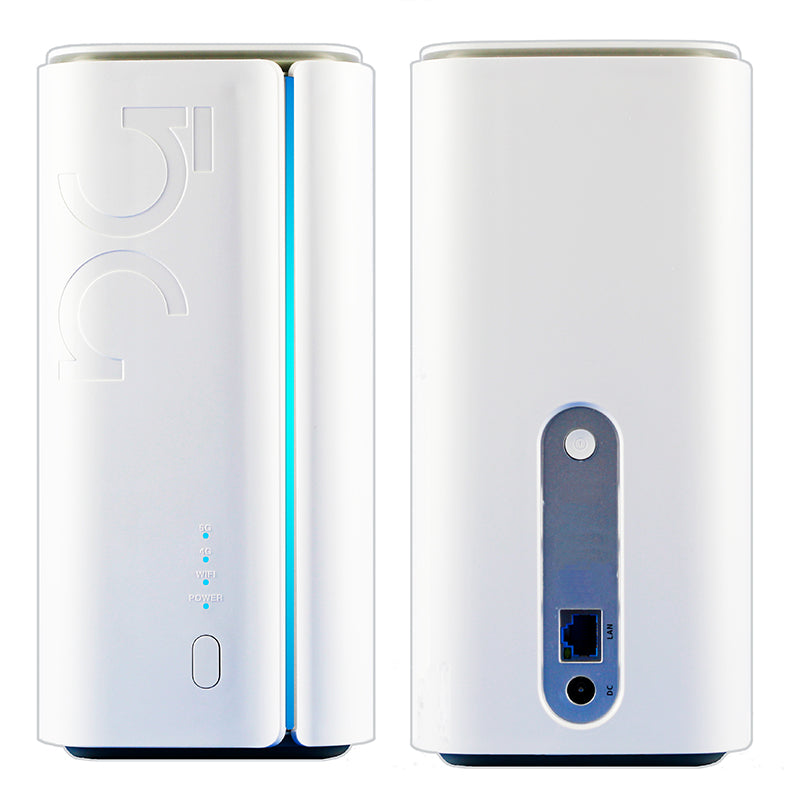

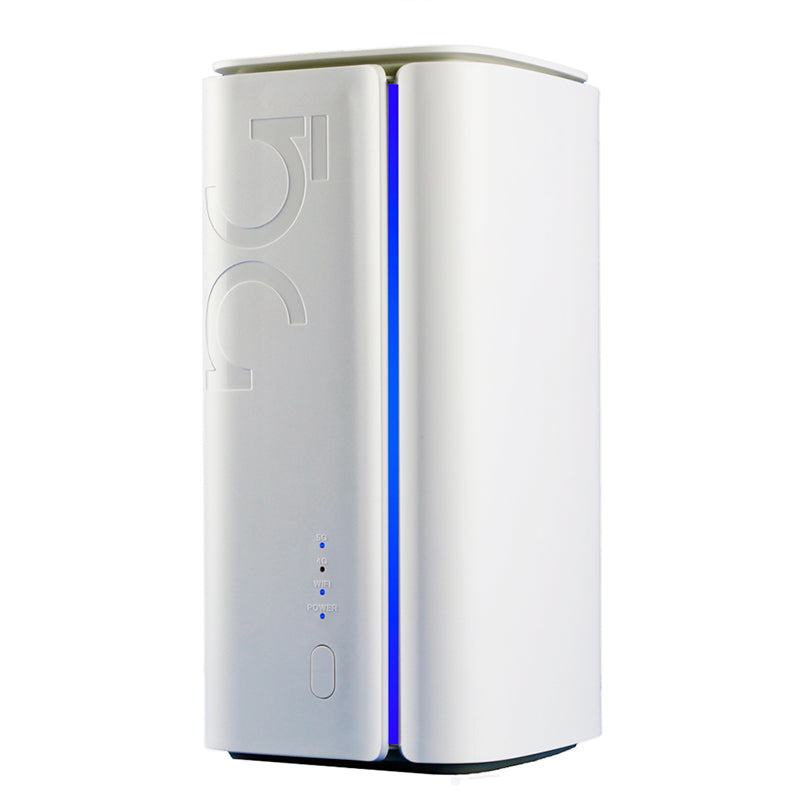

Unlocked 5G WiFi 6 CPE ZR01 Dual Bands Gigabit Wireless Router

5G + Wi-Fi 6 CPE ZR01

● Ultra-fast 5G sharing

● Smart wireless access router

• WIFI6(11AX)
• UNISOC CHIP
• BUILT-IN FIREWALL
• GIGABIT ETHERNET
• 32 TERMINAL SHARING
• 8 ANTENNAS
• NSA/SA NETWORKING
• 5G/4G

Product Status

● 100% New, Unlocked, Support English.

Imagine 5G high speed

● New experience of ultra-fast Internet access.

● The peak download rate in the real network test is up to 400 Mbps per second

● Support SA+NSA network environment and fully support mainstream frequency bands

WIFI 6 Owned Four major advantages

● Wi-Fi 6 is a new generation of Wi-Fi standard.

● Compared with the previous generation Wi-Fi 5, it can provide higher transmission rate, wider coverage.

● Lower power consumption and latency for multiple devicesto communicate simultaneously.

• High Transmission
• Low power consumption
• Low Latency
• Wide Coverage

● WIFI-6 Single Stream..................1.2Gbps

● WIFI-6 Single Stream......433Mbps

UNISOC 5G CHIP

Good compatibility and stable signal

• Support NSA+SA network environment
• Enjoy 5G high-speed Internet experience
• Downlink peak theoretical rate of 2.2Gbps
• Support mainstream frequency bands

Seamless roaming with hybrid backhaul

● 5G network shared by multiple people

5G CPE wireless router can allow the whole family to enjoy 5G network, It can support up to 32 wifi users and meet the audio, video, gaming and entertainment needs of the whole family.

Ring layout, Signal is always online

Built-in 8 5G full-band multi-polarized butterfly antennas to ensure 360° capture of better signals. The antenna volume is reduced by 20% and the 5G signal reception range is increased by 30%.

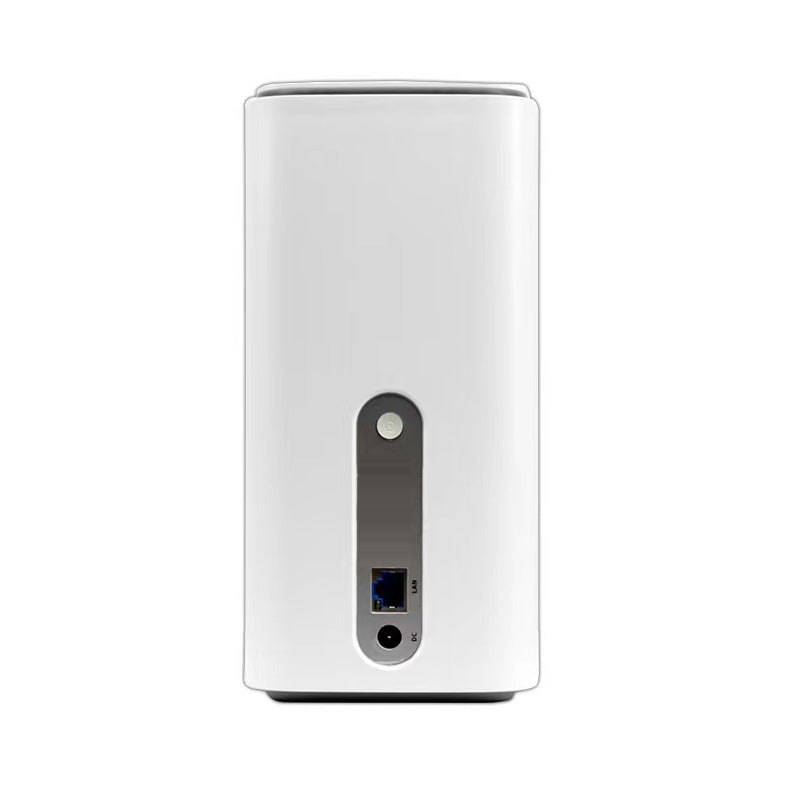

Both card insertion and Internet accessYou can also plug in a network cable to access the Internet

5G CPE wireless router, equipped with 1 Gigabit network port,supports 5G/4G or wired broadband Internet access,and can also support 4K video playback without lag, for a better experience.

• Support 4K
• Support 4G/5G
• Gigabit Ethernet Port

Applicable to CPE wireless router Eight Scenes

As long as there is 5G signal coverage, you can insert the card to get high-speed Wi-Fi, without going through cumbersome network migration procedures.

• Mobile office................Unlimited high-speed internet.
• Home Internet.............Stable connection for multiple devices
• Short-term rental........Worry-free moving
• Corporate Office.........Economical and convenient
• Market Store................No need to be bound by network cables
• RV travel........................Enjoy high-speed Internet
• Outdoor gatherings..Follow your heart
• Live Video......................No lag

5G CPE ZR01 Specifications

Platform

• CPU: UDX710, Dual core ARM Cortex-A55 1.35GHz
• System: Linux

Memory

• RAM: 4Gb, SIP LPDDR4X
• ROM: 2Gb, External NAND

Radio Frequency

● 3GPP: R8, R9...,R15

● Throughput rate

• HSDPA: 42.2Mbps (DL) (Category 24)
• HSUPA: 11Mbps (UL) (Category 7)
• WCDMA: 384Kbps (DL) / 384Kbps (UL)
• LTE FDD: 300Mbps (DL) / 50Mbps (UL)
• LTE TDD: 260Mbps (DL) / 30Mbps (UL)
• 5G NR TDD: 2Gbps (DL) / 500Mbps (UL)

● LTE ANT: 1T2R

● 5G ANT: 1T4R

● WCDMA/HSPA: B1

● TDD-LTE: B34/38/39/40/41

● FDD-LTE: B1/B3/B5/B8

● CA: B1+B3, B1+B1, B3+B3, B39+B41, B39+B39, B40+B40, B41+B41

● 5G NR: FDD: N1/N3/N28

● 5G NR TDD: N41/N78

● NR ENDC: B3+N41, B39+N41, B1+N78, B3+N78, B5+N78, B8+N78

● Output Power

• Class 3 (24 dBm +1/-3 dB), WCDMA Bands
• Class 3 (23 dBm ±2 dB), LTE Bands
• Class 3 (23 dBm ±2 dB), 5G NR Bands

Software

● Protocol: TCP/UDP/HTTP/PING/MQTT

● IP4/IP6: Support

● Web Graphical Interface: Support

● Security: WPA/WPA2-Personal

● RNDIS: Support

● FOTA: Support

● Language: English

Hardware

● Button: POWER, WPS, RESET

● IO: USB2.0, TYPE C

● RJ45: stand-up 1000M

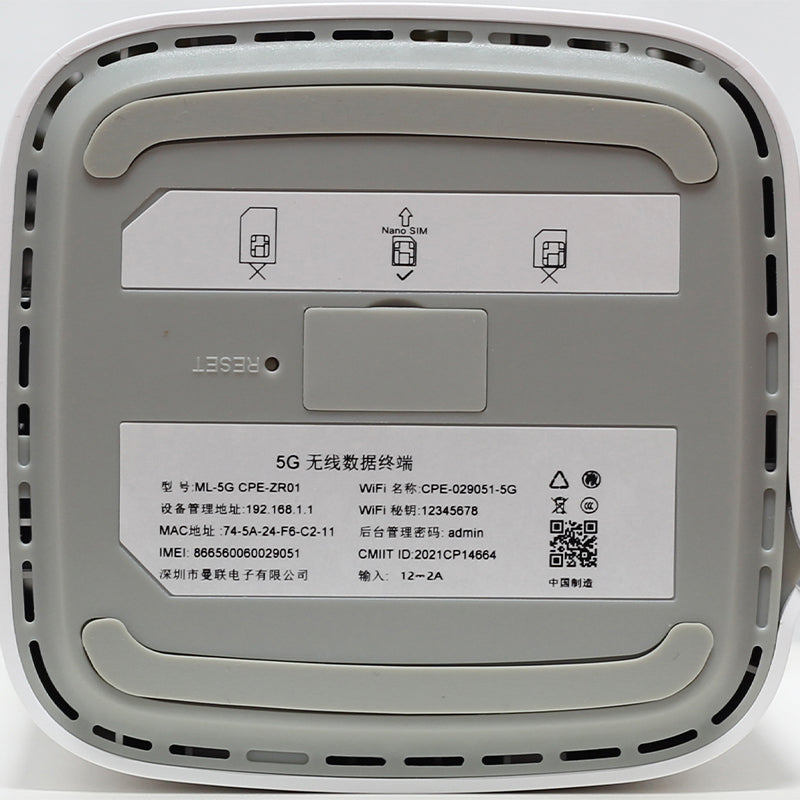

● Sim: NANO 1 indivual SIM

● LED

• 5G: Blue, Orange
• 4G: Blue, Orange
• WiFi,: Blue
• Power: Blue

● Light Bar: 1 indivual

Wi-Fi 6

● Chips: AIC8800DW+AIC8800D80P, Dual bands 2.4GHz/5GHz

● WiFi Protocol: 802.11 a/b/g/n/ac/ax

● WiFi Antennas: 1x1

● Transmission Power:

• 16dBm(Max) in 11b mode
• 14dBm(Max) in 11g mode
• 14dBm(Max) in 11n mode
• 13dBm(Max) in 11ac mode
• 13dBm(Max) in 11ax mode

● Sensitivity:

• MCS11:-58
• MCS9: -63dBm@10% PER
• MCS7: -68dBm@10% PER
• 54M：-70dBm@10% PER
• 11M：-83dBm@8% PER
• 6M：-88dBm@10% PER
• 1M：-90dBm@8% PER

● Data Rate

• 11ax: 600/540/480…36Mbps (Auto Rate Sensing)
• 11ac: 433/390/325…32.5Mbps (Auto Rate Sensing)
• 11n: 150 Mbps /…/7.2Mbps (Auto Rate Sensing)
• 11g: 54/48/36/24/18/12/9/6 Mbps (Auto Rate Sensing)
• 11b: 11/5.5/2/1 Mbps (Auto Rate Sensing)

Electrical

● ESD: contact ±6k, air ±10K

● EOS: VBAT 200V , VBUS 200V

● Operate Temperature:  -20 ~ +50℃

● Storage Temperature:  -30 ~ +70℃

Authentication

CCC/ROHS/FCC/CE

Package

• 5G CPE ZR01*1
• Chinese Power Plug*1
• UK or EU Power Adaptor*1
• RJ45 Ethernet Cable*1
