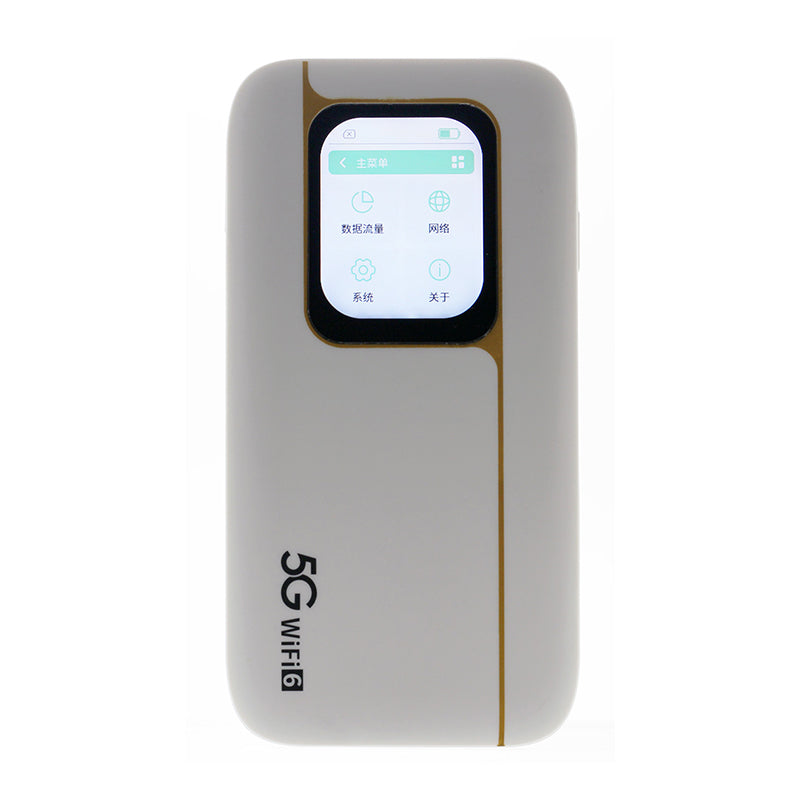

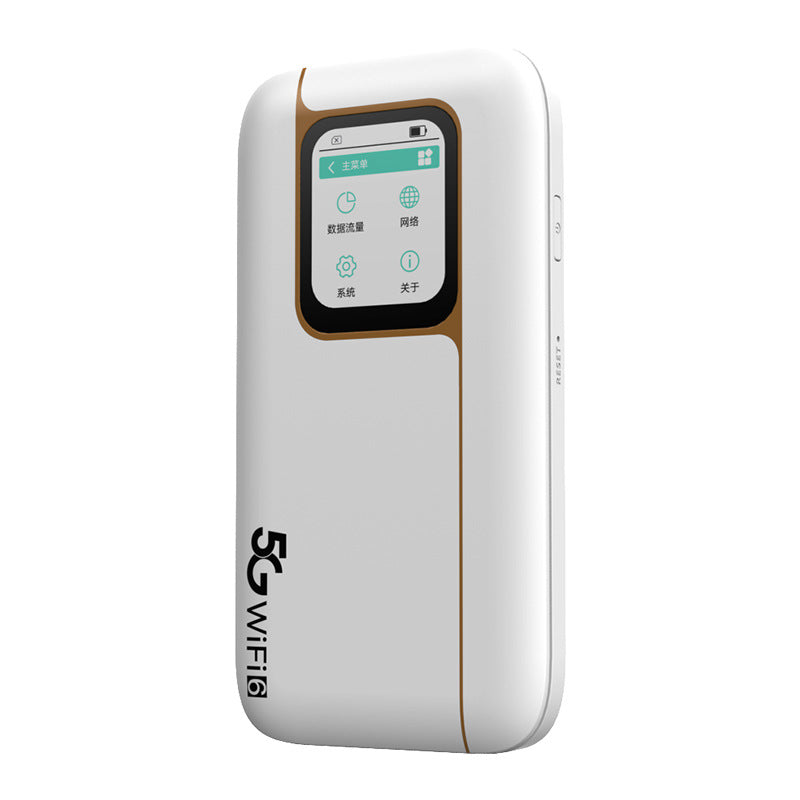

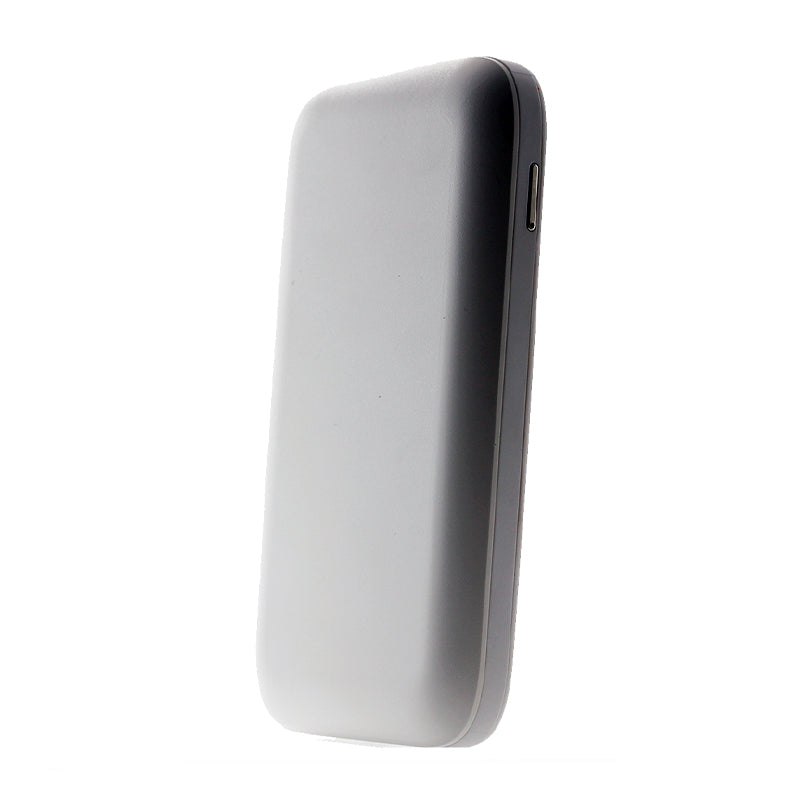

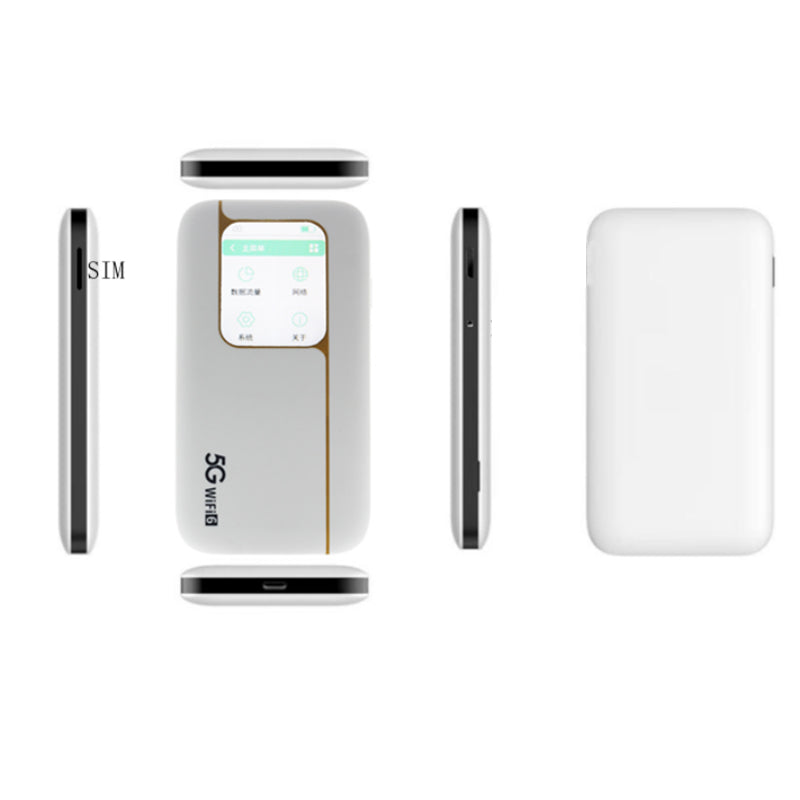

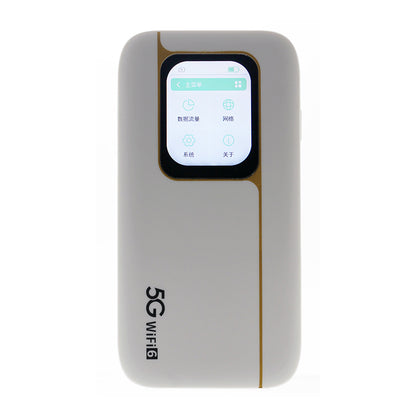

Unlocked Sim Card 5G Potable Wi-Fi 6 Router ML802 4G LTE MiFi

● 5G Smart Wireless WiFi Router

● True 5G gigabit level speed is really fast, with fast network speed and low latency

● 5G core technology DBDC supports simultaneous operation of 5.8GHz and 2.4GHz

• 5.8GHz anti-interference speed is fast
• 2.4GHz coverage with wide wall penetration is excellent

● Realize simultaneous connection of mobile phones, televisions, etc., so you no longer have to manually switch

● AI intelligent acceleration algorithm with fast network speed and seamless latency

● Self developed WIFI5 and WIFI6 antenna coexistence technology

● 8 antennas for parallel transmission and reception

• Faster and more stable network
• Main antenna, diversity antenna, wifi custom antenna, total 8 pieces

● 6000mAh high-capacity battery with fast charging and long battery life, ensuring continuous connection without power interruptions

● Self-developed temperature regulation mechanism ensures no overheating even after prolonged use, providing greater stability and reliability

● Professional firewall safeguards network security, supports changing names and passwords, and protects privacy.

● 5G/4G dual-mode full network coverage supports NSA+SA networks

● 5G speed is fast, 4G coverage is wide, seamless switching allows you to enjoy the network anytime, anywhere

● Supports simultaneous connection of 32 devices

● Capable of handling various complex usage scenarios

• Travel, Party, Outdoor Camping
• Business Office Outward Meeting
• Car network sharing
• Friends Gathering Game Video
• Headquarters office building

5G Mobile WiFi ML802 Specifications

Platform

• CPU: UDX710, Dual core ARM Cortex-A55 1.35GHz
• System: Linux

Product Status

• 100% New Device
• Support English
• Unlocked Sim Card Network
• Colors: White/Black/Grey. Random Shipment

Memory

• RAM: 4Gb, SIP LPDDR4X
• ROM: 2Gb, External NAND

Radio Frequency

● 3GPP: R8, R9...,R15

● Throughput rate

• HSDPA: 42.2Mbps (DL) (Category 24)
• HSUPA: 11Mbps (UL) (Category 7)
• WCDMA: 384Kbps (DL) / 384Kbps (UL)
• LTE FDD: 300Mbps (DL) / 50Mbps (UL)
• LTE TDD: 260Mbps (DL) / 30Mbps (UL)
• 5G NR TDD: 2Gbps (DL) / 500Mbps (UL)

● LTE ANT: 1T2R

● 5G ANT: 1T4R

● WCDMA/HSPA: B1

● TDD-LTE: B34/38/39/40/41

● FDD-LTE: B1/B3/B5/B8

● CA: B1+B3, B1+B1, B3+B3, B39+B41, B39+B39, B40+B40, B41+B41

● 5G NR: FDD: N1/N3/N28

● 5G NR TDD: N41/N78

● NR ENDC: B3+N41, B39+N41, B1+N78, B3+N78, B5+N78, B8+N78

● Output Power

• Class 3 (24 dBm +1/-3 dB), WCDMA Bands
• Class 3 (23 dBm ±2 dB), LTE Bands
• Class 3 (23 dBm ±2 dB), 5G NR Bands

Software

● Protocol: TCP/UDP/HTTP/PING/MQTT

● IP4/IP6: Support

● Web Graphical Interface: Support

● Security: WPA/WPA2-Personal

● RNDIS: Support

● FOTA: Support

● Language: English

Hardware

● Button: POWER, RESET

● IO: TYPE C

● Sim: NANO  SIM

● Battery: 6000mAh

● Charge: 5V/2A

● LED:

• Power, 3 colors
• 4G, 3 colors
• 5G, 3 colors
• WIFI, 3 colors

Wi-Fi 6

● Chips: AIC8800DW+AIC8800D80P, Dual bands 2.4GHz/5GHz

● WiFi Protocol: 802.11 a/b/g/n/ac/ax

● WiFi Antennas: 1x1

● Transmission Power:

• 16dBm(Max) in 11b mode
• 14dBm(Max) in 11g mode
• 14dBm(Max) in 11n mode
• 13dBm(Max) in 11ac mode
• 13dBm(Max) in 11ax mode

● Sensitivity:

• MCS11:-58
• MCS9: -63dBm@10% PER
• MCS7: -68dBm@10% PER
• 54M：-70dBm@10% PER
• 11M：-83dBm@8% PER
• 6M：-88dBm@10% PER
• 1M：-90dBm@8% PER

● Data Rate

• 11ax: 600/540/480…36Mbps (Auto Rate Sensing)
• 11ac: 433/390/325…32.5Mbps (Auto Rate Sensing)
• 11n: 150 Mbps /…/7.2Mbps (Auto Rate Sensing)
• 11g: 54/48/36/24/18/12/9/6 Mbps (Auto Rate Sensing)
• 11b: 11/5.5/2/1 Mbps (Auto Rate Sensing)

Electrical

● ESD: contact ±6k, air ±10K

● EOS: VBAT 200V , VBUS 200V

● Operate Temperature:  -20 ~ +50℃

● Storage Temperature:  -30 ~ +70℃

Authentication

● CCC/ROHS/FCC/CE

Package

• ML802 device *1
• Battery: 6000mAh, Removable *1
• Warranty certificate in Chinese *1
• User's Manual in Chinese *1
